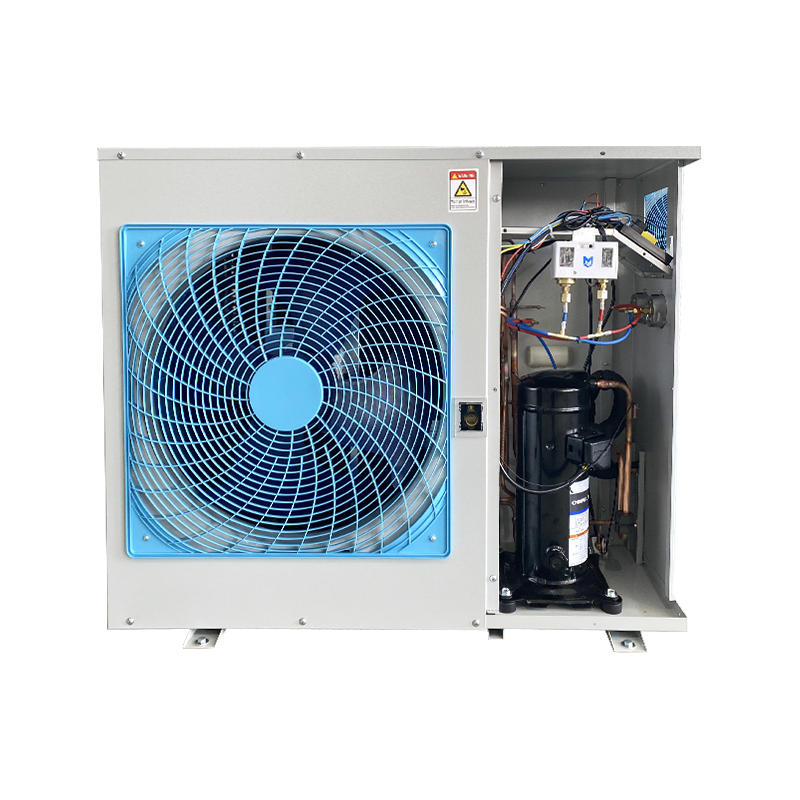

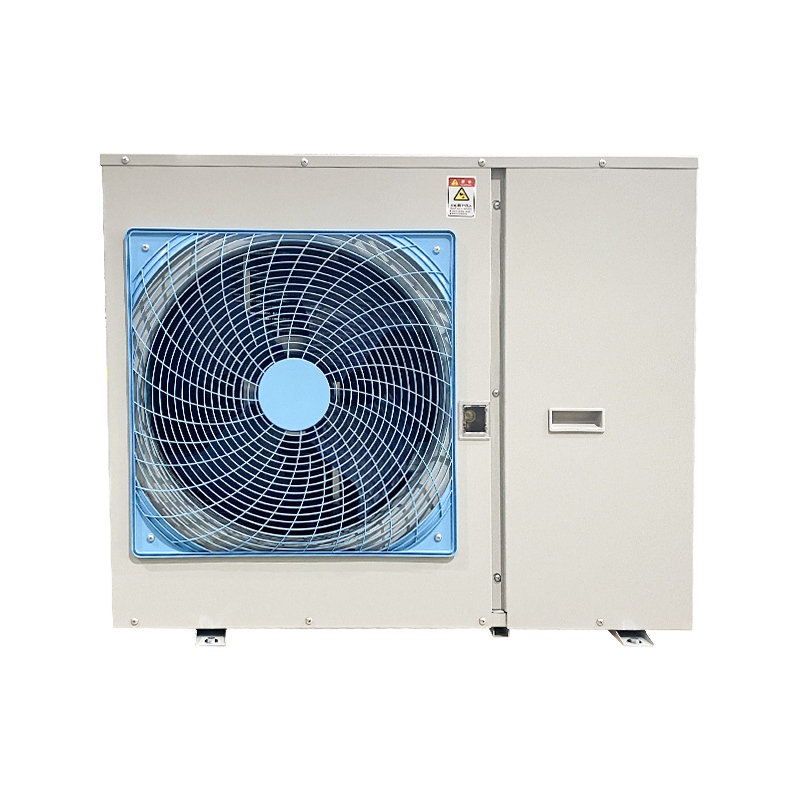

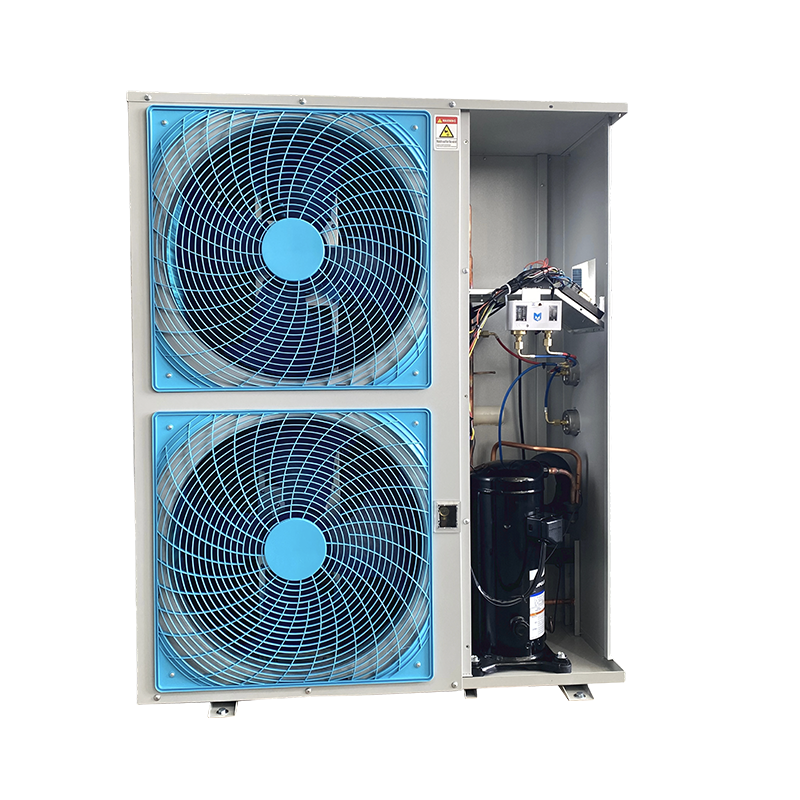

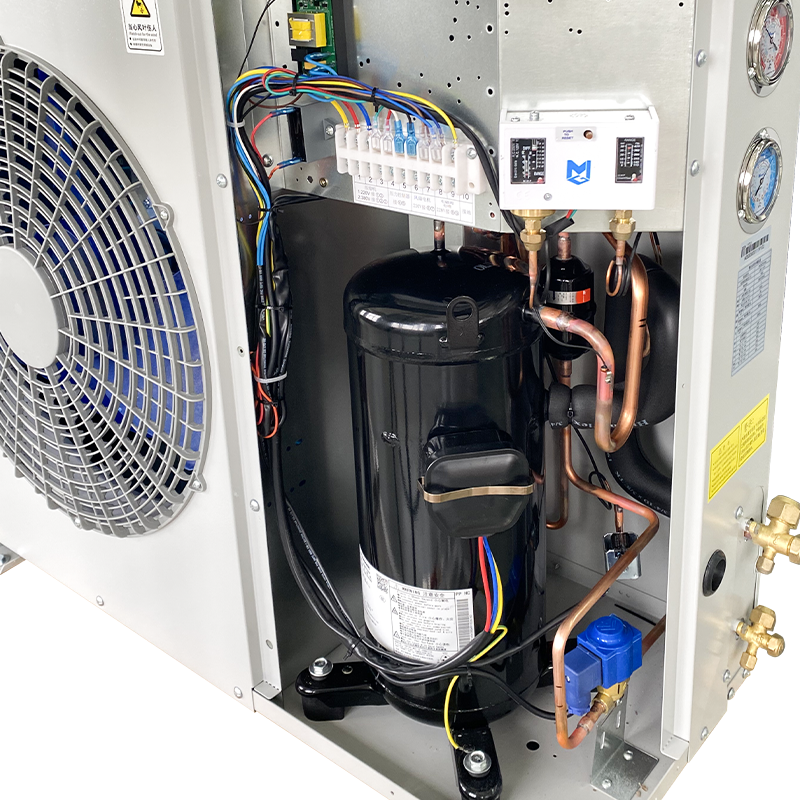

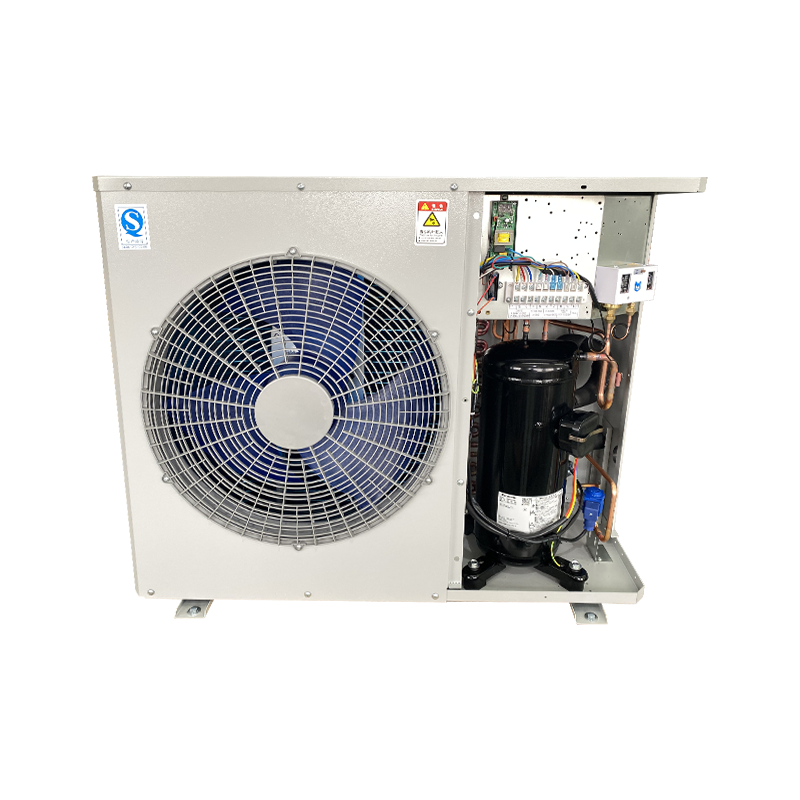

Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP
Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP

Side Air Outlet Condensing Unit(Using Copeland Compressor) 2-20HP

The SIDE AIR OUTLET CONDENSING UNIT(Using Copeland compressor) 2-20HP, powered by high-performance Copeland scroll compressors, is designed to deliver reliable, efficient, and stable cooling solutions across a wide range of applications. With horsepower options from 2HP to 20HP, this unit offers outstanding versatility to meet different project demands, whether for cold storage, food processing, or logistics refrigeration. Its side air outlet design enhances airflow, improves heat exchange efficiency, and makes installation more flexible in confined spaces. Built to perform under varying conditions, the unit supports multiple temperature ranges: -20~10℃, suitable for fresh-keeping and cooling applications; -40~0℃ for deep-freezing needs; and -40~-5℃ for ultra-low temperature environments. By adopting Copeland’s advanced scroll technology, it ensures smooth operation, reduced vibration, and higher energy efficiency, translating into lower running costs and longer service life. The compact structure, thoughtful layout, and durable construction make maintenance simple while guaranteeing long-term reliability. This condensing unit is not only a strong performer but also an intelligent investment, providing consistent cooling performance, stable operation even in tough conditions, and maximum value for customers looking for energy-saving and dependable refrigeration solutions. Whether in supermarkets, cold storage warehouses, food industries, or logistics chains, it delivers powerful cooling, energy efficiency, and peace of mind in every application.

Contact Us
PREV：Side Air Outlet Condensing Unit(Using Panasonic Compressor) 3-12HP
NEXT：No next article
Product Parameters
Pdf DownLoad
Unit Model AOSZGA-2HP AOSZGA-3HP AOSZGA-4HP AOSZGA-5HP         AOSZGA-6HP AOSZGA-8HP AOSZGA-10HP AOSZGA-8HP AOSZGA-10HP AOSZGA-13HP AOSZGA-15HP AOSZGA-20HP
Condensed air outlet type Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -20℃~10℃/R404A
Power(V-Ph-Hz) 380~420/3/50
Compressor Type Emerson Scroll compressor
Capacity(P) 2  3  4  5  6  8  10  8  10  13  15  20
Model ZB15KQE-TFD ZB21KQE-TFD ZB29KQE-TFD ZB38KQE-TFD ZB45KQE-TFD ZB58KQE-TFD ZB76KQE-TFD ZB58KQE-TFD ZB76KQE-TFD ZB95KQE-TFD ZB114KQE-TFD ZB130KQE-TFD
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  2  2  2  2  2  2  2  2  2
Power(W) 60  130  130  130  130  130  130  230  420W 420W 550W 780W
Fanspecifications 480X153 500×148 500×148 500×148 500×148 500×148 500×148 450  500  500  550  600
Air volume(m³/h) 3500  5000  5000  5000×2 5000×2 5000×2 5000×2 4800×2 6550×2 6550×2 8600×2 11000×2
Specification of condenser copper Internal thread
Condensation area(m²) 11  30  40  50  60  80  100  80  100  120  150  200
Condenser copper tube φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(21×18.19) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 3  5  5  8  8  10  10  10  10  12  15  20
Specification for globe valves and welded copper pipes 6+12
Threaded connection		 10+16
Threaded connection port		 12+19
Threaded connection port		 16+28
Welding connection port		 16+28
Welding connection port		 19+35
Welding connection port		 19+42
Welding connection
Recommended cold storage volume for cold storage
temperature range of 0~-18 C(m³)		 10~15 20~50 40~60 50~100 60~120 80~140 100~150 80~140 100~150 120~200 150~300 200~400
Cooling capacity Evaporating Temperature Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃
-20℃ 2470  3810  5170  6520  7630  9710  13300  9710  13300  16050  18850  21100
-15℃ 3080  4660  6320  7970  9340  12200  16400  12200  16400  20200  23700  26000
-10℃ 3780  5650  7660  9660  11300  14900  19900  14900  19900  24600  29100  31500
-5℃ 4570  6780  9200  11600  13600  17950  23900  17950  23900  29400  35100  37800
0℃ 5480  8090  10950  13850  16200  21400  28500  21400  28500  34900  42000  45000
10℃ 7680  11250  15300  19300  22600  29800  39500  29800  39500  48500  58500  62600
Product dimensions:length×width×height(mm) 1000×440×575 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1230×490×1350 1380×764×1022 1344×764×922 1444×764×1022 1444×894×1122 1644×899×1222
Packaging dimensions:length×width×height(mm) 1120x450x695 1120x450x955 1120x450x955 1120x450x1360 1120x450x1360 1350X490X1510 1350X490X1510 1580X880X1180 1530X880X1090 1645X900X1170 1645X1015X1290 1830X1200X1390
Installation length×width(mm) 725×410 725×410 725×410 725×410 725×410 690×450 690×450 906×725 870×725 970×755 970x855 970x860
Noise dB(A) 49.5  51  51  53  53  56  56  56  56  59  63  65
Net weight (kg) 48  71  75  90  99  122  129  / | / / /
Gross weight(kg) 55  78  82  97  106  130  137  / / / / /
Throttling device Thermal expansion valve (user provided)
Recommend using the thermal expansion valve model TES24# TES26# TES26# TGES6 TGES6 TGES9 TGES11 TGES9 TGES11 TGES13 TGES13 TGES13
Recommended air cooler model HS401AD02.5 HS401AD03.4 HS402AD04.2 HS402AD06.0 HS402AD06.6 HS403AD09.7 HS404AD11.9 HS403AD09.7 HS404AD11.9 HS404AD13.5 HS504AD16.5 HS504AD20.8
Note: In order to ensure the cooling effect of the unit installation,it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable-diameter copper pipes can be used when connecting to the condensing unit!

Unit Model AOSZFA-2HP AOSZFA-3HP AOSZFA-4HP AOSZFA-5HP AOSZFA-6HP AOSZFA-8HP AOSZFA-10HP AOSZFA-10HP AOSZFA-10HP AOSZFA-13HP AOSZFA-15HP AOSZFA-17HP
Condensed air outlet type Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -40℃~0℃/R404A
Power(V-Ph-Hz) 380~420/3/50
Compressor Type Emerson Scroll compressor
Capacity(P) 2  3  4  5  6  8  10  8  10  13  15  17
Model ZF06KQE-TFD ZF09KQE-TFD ZF13KQE-TFD ZF15KQE-TFD ZF18KQE-TFD ZF25KQE-TFD ZF34KQE-TFD ZF25KQE-TFD ZF34KQE-TFD ZF41KQE-TFD ZF49KQE-TFD ZF54KQE-TFD
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  2  2  2  2  2  2  2  2  2
Power(W) 60  130  130  130  130  130  130  230  420W 420W 550W 550W
Fanspecifications 480×153 500×148 500×148 500×148 500X148 500×148 500×148 450  500  500  550  550
Volume(m³/h) 3500  5000  5000  5000×2 5000×2 5000×2 5000×2 4800×2 6550×2 6550×2 8600×2 8600×2
Specification of condenser copper Internal thread
Condensation area(m²) 11  30  40  50  60  80  100  80  100  120  150  150
Condenser copper tube φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(21×18.19) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 3  5  5  8  8  10  10  10  10  12  15  15
Specification for globe valves and welded copper pipes 6+12 Threaded
connection port		 10+16 Threaded connection port 12+19 Threaded connection port 16+28 Welding connection port 16+28 Welding connection port 19+35 Welding connection port
Recommended cold storage volume for cold storage
temperature range of 0~-18 C(m³)		 10~15 20~50 40~60 50~100 60~120 80~140 100~150 80~140 100~150 120~200 150~300 150~300
Cooling capacity(W) Evaporating Temperature Test conditions:Return air temperature of 20℃,subcooling degree of 0K;Condensation temperature 40℃
-40℃ 1160  1560  2240  2730  3370  4190  5430  4190  5430  6880  8270  9070
-30℃ 1820  2470  3570  4390  5300  6580  8750  6580  8750  10900  13050  14300
-20℃ 2720  3690  5400  6630  7890  9980  13100  9980  13100  16100  19550  21400
-10℃ 3940  5360  7850  9670  11450  14200  19000  14200  19000  23200  / /
-5℃ 4700  6390  9350  11550  13700  16600  22600  16600  22600  27700  / /
0℃ 5570  7580  11050  13700  16300  / / / / / / /
Product dimensions:length×width×height(mm) 1000×440×575 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1230×490×1350 1380×764×102 1344×764×922 1444×764×1022 1444×894×1122 1444×894×1122
Packaging dimensions:length×width×height(mm) 1120x450x695 1120x450x955 1120x450x955 1120×450x1360 1120x450x1360 1350X490X1510 1350X490X1510 1580X880X1180 1530X880X1090 1645X900X1170 1645X1015X1290 1645X1015X1290
Installation length×width(mm) 725×410 725×410 725×410 725×410 725×410 690×450 690×450 906×725 870×725 970×755 970x855 970x855
Noise dB(A) 49.5  51  51  53  53  56  56  56  56  59  63  63
Net weight(kg) 48  71  75  90  99  122  129  / / / / /
Gross weight (kg) 55  78  82  97  106  130  137  / / / / /
Throttling device Thermal expansion valve (user provided)
Recommend using the thermal expansion valve model TES24# TES26# TES26# TGES6 TGES6 TGES9 TGES11 TGES9 TGES11 TGES13 TGES13 TGES13
Recommended air cooler model HS401AJ01.8 HS401AJ02.5 HS402AJ03.3 HS402AJ04.4 HS402AJ04.9 HS403AJ07.2 HS404AJ08.7 HS403AJ07.2 HS404AJ08.7 HS404AJ10.1 HS504AJ12.1 HS504AJ15
Note: In order to ensure the cooling effect of the unit installation,it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable-diameter copper pipes can be used when connecting to the condensing unit!

Unit Model AOSZFIA-4HP AOSZFIA-5HP AOSZFIA-6HP AOSZFIA-8HP AOSZFIA-10HP AOSZFIA-8HP AOSZFIA-10HP AOSZFIA-12HP AOSZFIA-15HP AOSZFIA-18HP
Condensed air outlet type Side air outlet      Top air outlet
Evaporating Temperature/Refrigerant -40℃~-5℃/R404A
Power(V-Ph-Hz) 380~420/3/50
Compressor Type Emerson Scroll compressor
Capacity(P) 4  5  6  8  10  8  10  12  15  18
Model ZFI20KQE-TFD ZFI23KQE-TFD ZFI26KQE-TFD ZFI36KQE-TFD ZFI39KQE-TFD ZFI36KQE-TFD ZFI39KQE-TFD ZFI50KQE-TFD ZFI59KQE-TFD ZFI68KQE-TFD
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  2  2  2  2  2  2  2  2  2
Power(W) 130  130  130  130  130  230  420W 420W 550W 780W
Fanspecifications 500×148 500×148 500×148 500×148 500X148 450  500  500  550  600
Air volume(m³/h) 5000  5000×2 5000×2 5000×2 5000×2 4800×2 6550×2 6550×2 8600×2 11000×2
Specification of condenser copper Internal thread
Condensation area(m²) 40  50  60  80  100  80  100  120  150  200
Condenser copper tube φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(21×18.19) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 5  8  8  10  10  10  10  12  15  20
Specification for globe valves and welded copper pipes 12+19 Threaded connection port 16+28 Welding connection port 16+28 Welding connection port 19+35 Welding connection port 19+42 Welding connection
Recommended cold storage volume for cold storage temperature
range of 0~-18 C(m³)		 40~60 50~100 60~120 80~140 100~150 80~140 100~150 120~200 150~300 200~400
Cooling capacity(W) Evaporating Temperature  Test conditions:Return air temperature of 20℃,subcooling degree of 0K;Condensation temperature 40℃
-40℃ 3270  4790  5120  6320  7250  6320  7250  8700  10600  12050
-30℃ 5010  6240  7360  9310  10700  9310  10700  12450  15150  17200
-20℃ 7270  8750  10450  13200  15100  13200  15100  17850  21800  24700
-10℃ 10200  12200  14600  17850  20500  17850  20500  24500  29800  /
-5℃ 11950  14250  17100  20500  23500  20500  23500  28100  34200  /
0℃ 13950  16500  19950  / / / / / / /
Product dimensions: length ×width×height(mm) 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1230×490×1350 1380×764×1022 1344×764×922 1444×764×1022 1444×894×1122 1644×899×1222
Packaging dimensions:length×width× height(mm) 1120×450×955 1120×450×1360 1120×450×1360 1350×490×1510 1350×490×1510 1580×880×1180 1530×880×1090 1645X900X1170 1645×1015×1290 1830×1200×1390
Installation length X width(mm) 725×410 725×410 725×410 690×450 690×450 906×725 870×725 970×755 970x855 970x860
Noise dB(A) 51  53  53  56  56  56  56  59  63  65
Net weight(kg) 75  90  99  122  129  / / / / /
Gross weight(kg) 82  97  106  130  137  / / / / /
throttling device Thermal expansion valve(user provided)
Recommend using the thermal expansion valve model TES26# TGES6 TGES6 TGES9 TGES11 TGES9 TGES11 TGES13 TGES13 TGES13
Recommended air cooler model HS402AJ03.3 HS402AJ04.4 HS402AJ04.9 HS403AJ07.2 HS404AJ08.7 HS403AJ07.2 HS404AJ08.7 HS404AJ10.1 HS504AJ12.1 HS504AJ15
Note:In order to ensure the cooling effect of the unit installation, it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable-diameter copper pipes can be used when connecting to the condensing unit!
