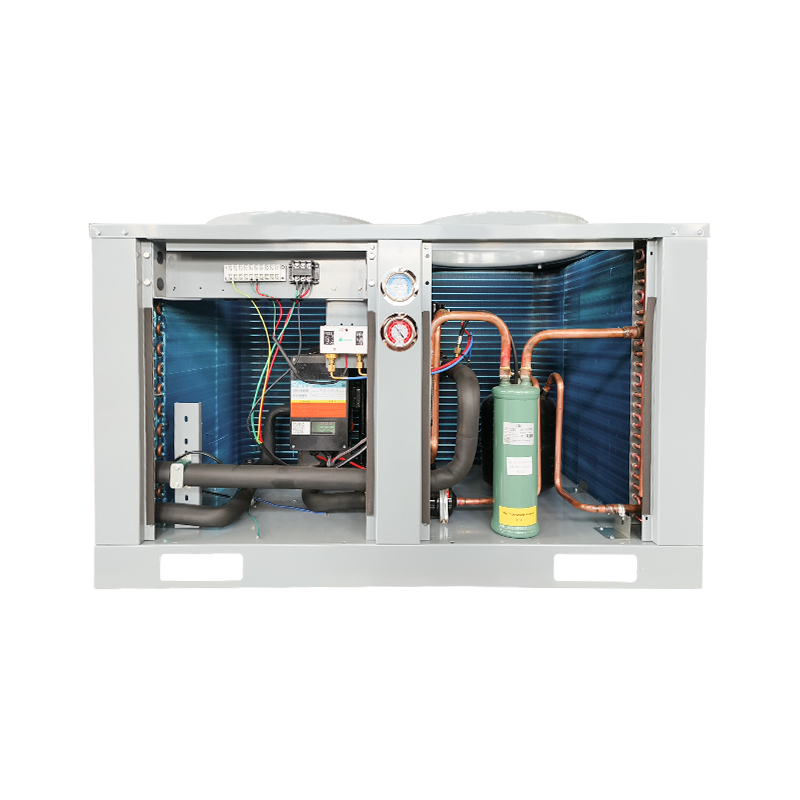

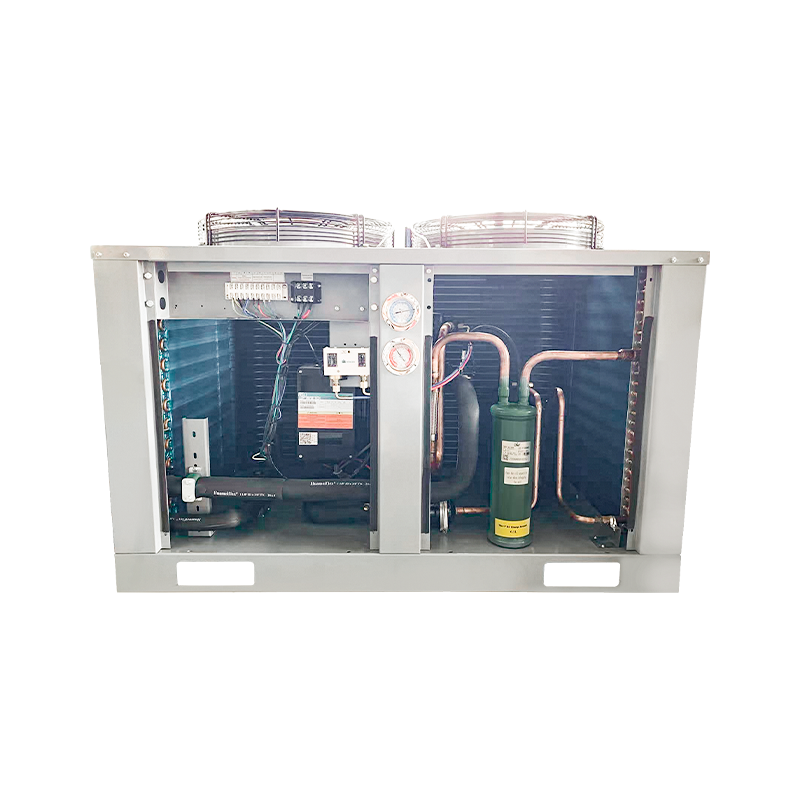

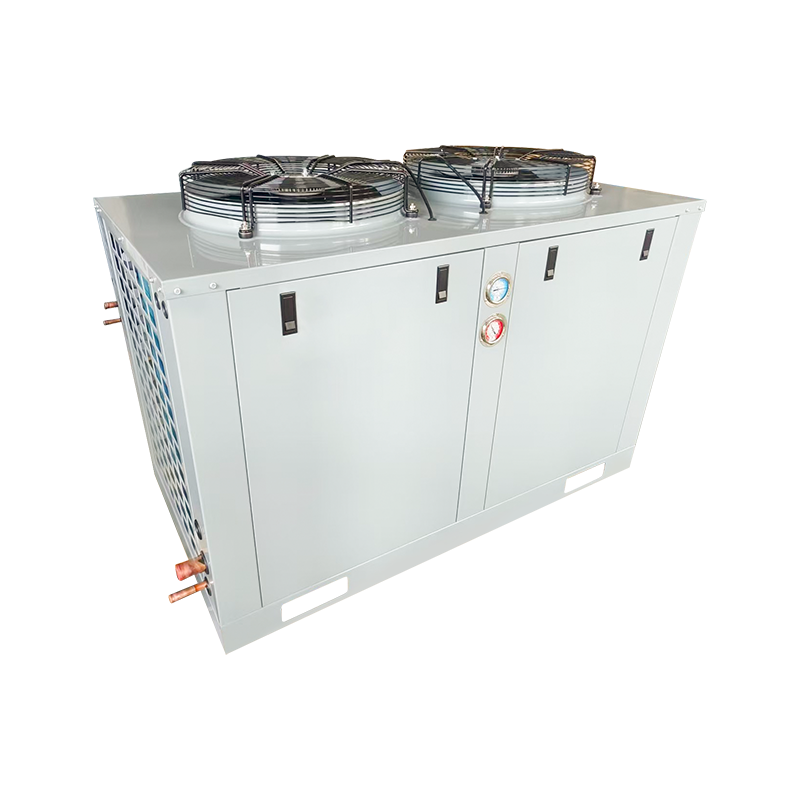

Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP

Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP

Our Top Air Outlet Condensing Unit(Using Panasonic compressor) 8-40HP— engineered for peak performance and reliability, powered by the world-renowned Panasonic scroll compressor. Designed for side-air discharge, this unit delivers powerful, efficient cooling across a wide range of demanding environments. Whether you’re operating in deep freeze (-30°C to -5°C) or medium-temperature (-15°C to +10°C) applications, this condensing unit adapts seamlessly to your needs — from cold storage warehouses and food processing facilities to supermarkets and industrial refrigeration systems. The Panasonic compressor ensures ultra-quiet operation, superior energy efficiency, and extended service life thanks to its robust, low-vibration scroll technology. With a compact side-discharge design, it saves valuable installation space while optimizing airflow for faster, more uniform cooling. Built to withstand harsh conditions and engineered for minimal maintenance, this unit reduces downtime and operating costs — giving you peace of mind and maximum ROI. Whether you’re upgrading an existing system or installing new refrigeration infrastructure, our Panasonic-powered condensing unit is the smart, future-proof choice for businesses that demand performance, durability, and efficiency.

Contact Us
PREV：Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
NEXT：Top Air Outlet Condensing Unit(Using Copeland Compressor) 8-40HP
Product Parameters
Pdf DownLoad
Unit Model AOSZS-3HP AOSZS-4HP AOSZS-3HP AOSZS-4HP AOSZS-5HP AOSZS-6HP AOSZS-8HP AOSZS-10HP AOSZS-12HP
Condensed air outlet type Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -30℃~5℃ /R22
Power(V-Ph-Hz) 50Hz,220V 50Hz,380V
Compressor Type Panasonic Scroll compressor
Capacity(P) 3  4  3  4  5  6  8  10  12
Model C-SBR120H15Q C-SB145H15Q C-SBR120H38Q C-SB145H38Q C-SB180H38Q C-SB205H38Q C-SC603H38H C-SC753H38H C-SC903H38H
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  1  2  2  2  2  2
Power(W) 130  130  130  130  130  130  130  2×420 2×420
Fanspecifications 500×148 500×148 500×148 500×148 500×148 500×148 500×148 500  500
Air volume(m³/h) 5000  5000  5000  5000  5000×2 5000×2 5000×2 6550×2 6550×2
Specification of condenser copper Internal thread
Condensation area(m²) 30  40  30  40  50  60  80  100  200
Condenser copper tube φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(25×21.65) φ9(25×21.65)
Reservoir volume (L) 5  5  5  5  8  8  10  10  12
Specification for globe valves and welded copper pipes 10+16 Threaded connection port     10+16 Threaded connection port 12+19 Threaded connection port 16+28 Welding connection port
Recommended cold storage volume for cold storage
temperature range of 0~-18 C(m³		 20~50 40~60 20~50 40~60 50~100 60~120 80~140 100~150 120~200
Cooling capacity(W) Evaporating Temperature Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃
-30℃ 2610  2810  2610  2810  3700  3910  4520  5100  6020
-15℃ 5260  5560  5260  5560  7250  8060  9310  12320  13960
-5℃ 8370  8870  8370  8870  11260  12890  14110  15660  17020
Product dimensions: length ×width×height(mm) 1000×440×825 1000×440×825 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1344×764×922 1444×764×1022
Packaging dimensions:length×width×height(mm) 1120×450×955 1120×450×955 1120×450×955 1120×450×955 1120×450×1360 1120×450×1360 1350×490×1510 1530×880×1090 1645X900×1170
Installation length×width(mm) 725×410 725×410 725×410 725×410 725×410 725×410 690×450 870×725 970×755
Noise dB(A) 51  51  51  51  53  53  56  56  59
Net weight(kg) 71  75  71  75  90  99  122  / /
Gross weight(kg) 78  82  78  82  97  106  130  / /
Throttling device Thermal expansion valve(user provided)
Recommend using the thermal expansion valve model TEX23# TEX24# TEX23# TEX24# TEX26# TEX26# TGEX7.5 TGEX9 TGEX11
Recommended air cooler model HS401AD03.4 HS402AD04.2 HS401AD03.4 HS402AD04.2 HS402AD06.0 HS402AD06.6 HS403AD09.7 HS404AD11.9 HS404AD13.5
Note: In order to ensure the cooling effect of the unit installation, it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable diameter copper pipes can be used when connecting to the condensing unit!

Unit Model AOSGS-3HP AOSGS-4HP AOSGS-3HP AOSGS-4HP AOSGS-5HP AOSGS-6HP AOSGS-8HP AOSGS-10HP AOSGS-12HP
Condensed air outlet type                         Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -15℃~10℃ /R22
Power(V-Ph-Hz) 50Hz,220V 50Hz,380V
Compressor Type Panasonic Scroll compressor
Capacity(P) 3  4  3  4  5  6  8  10  12
Model C-SBR115H15A C-SB145H15A C-SBR263H8A C-SB303H8A C-SB373H8A C-SB453H8A C-SC603H8H C-SC753H8H C-SC903H8H
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  1  2  2  2  2  2
Power(W) 130  130  130  130  130  130  130  2×420 2×420
Fanspecifications 500×148 500×148 500×148 500×148 500×148 500×148 500×148 500  500
Volume(m³/h) 5000  5000  5000  5000  5000×2 5000×2 5000×2 6550×2 6550×2
Specification of condenser copper Internal thread
Condensation area(m²) 30  40  30  40  50  60  80  100  200
Condenser copper tube φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 5  5  5  5  8  8  10  10  12
Specification for globe valves and welded copper pipes 10+16 Threaded connection port     10+16 Threaded    connection port 12+19 Threaded connection port 16+28 Welding connection port
Recommended cold storage volume for cold storage
         temperature range of 0~~18 C(m³)		 20~50 40~60 20~50 40~60 50~100 60~120 80~140 100~150 120~200
Cooling capacity(W) Evaporating Temperature Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃
-15℃ 5126  5740  5126  5740  7150  8370  9315  12310  13960
0℃ 7095  10130  7095  10130  10330  12540  22130  25640  30250
10℃ 8370  12260  8370  12260  14950  18790  33210  38050  44890
Product dimensions: length ×width×height(mm) 1000×440×825 1000×440×825 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1344×764×922 1444×764×1022
Product dimensions: length ×width×height(mm) 1120x450×955 1120×450×955 1120×450×955 1120×450×955 1120×450×1360 1120x450x1360 1350X490X1510 1530X880X1090 1645×900×1170
Packaging dimensions:length×width×height(mm) 725×410 725×410 725×410 725×410 725×410 725×410 690×450 870×725 970×755
Installation length×width(mm) 51  51  51  51  53  53  56  56  59
Net weight(kg) 71  75  71  75  90  99  122  / /
Gross weight(kg) 78  82  78  82  97  106  130  / /
Throttling device Thermal expansion valve(user provided)
Recommend using the thermal expansion valve model TEX23# TEX24# TEX23# TEX24# TEX26# TEX26# TGEX7.5 TGEX9 TGEX11
Recommended air cooler model HS401AD03.4 HS402AD04.2 HS401AD03.4 HS402AD04.2 HS402AD06.0 HS402AD06.6 HS403AD09.7 HS404AD11.9 HS404AD13.5
Note:In order to ensure the cooling effect of the unit installation,it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable diameter copper pipes can be used when connecting to the condensing unit!
