Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP
Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP

Top Air Outlet Condensing Unit(Using Xecom Compressor) 8-40HP

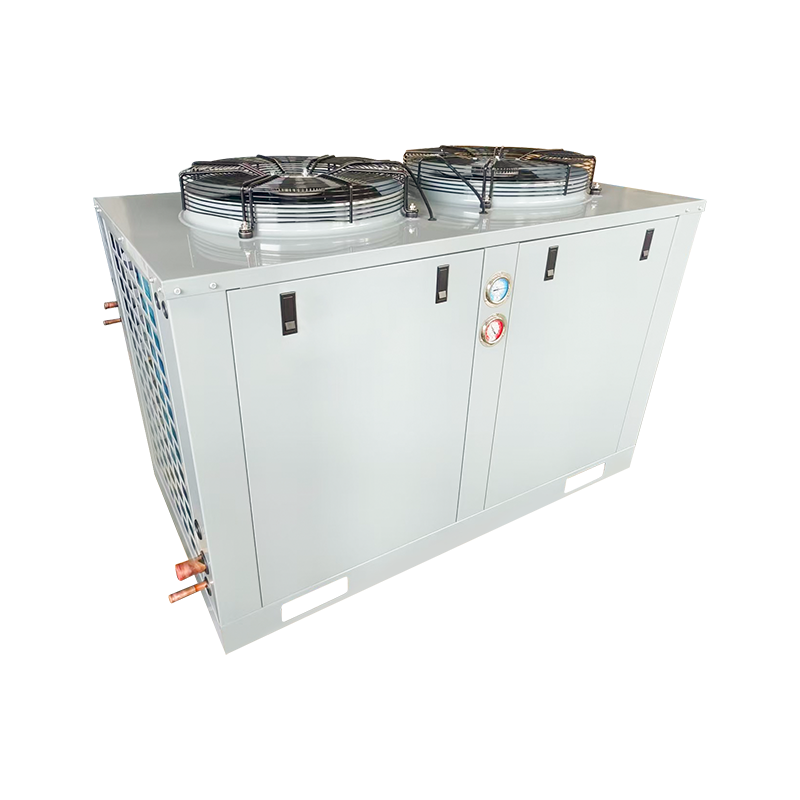

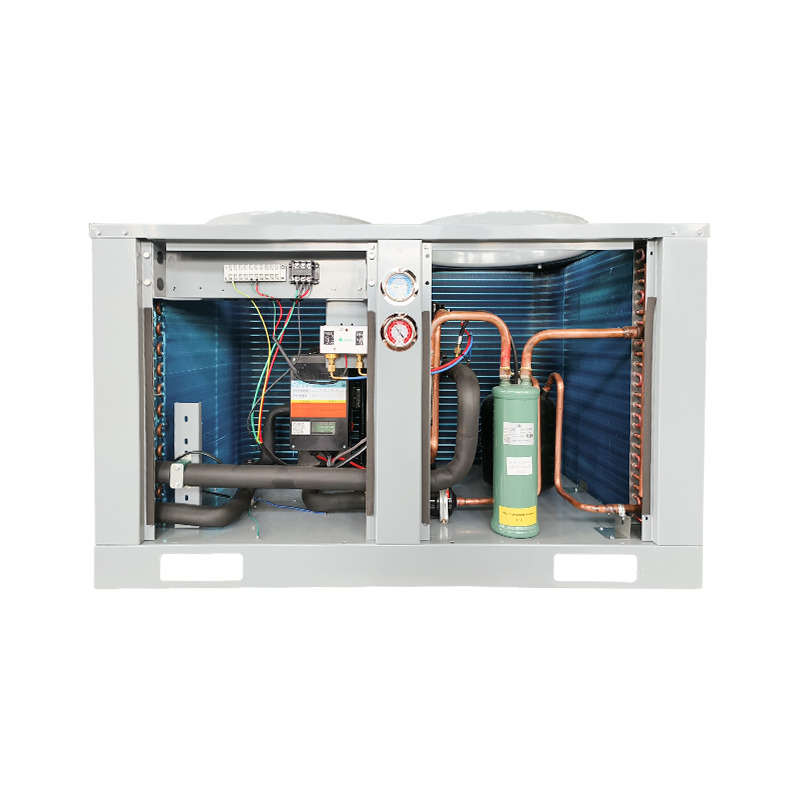

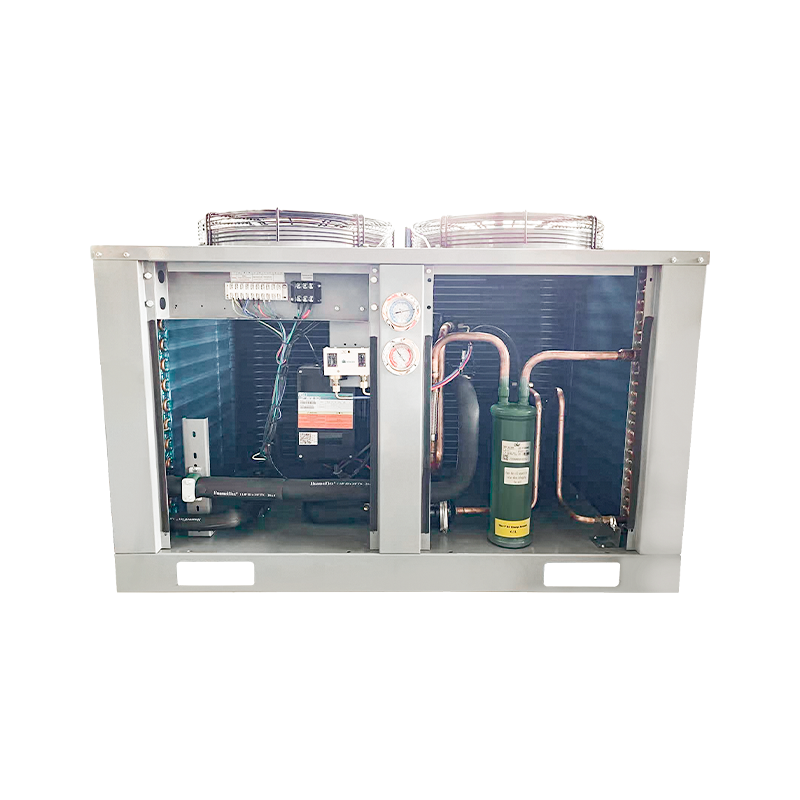

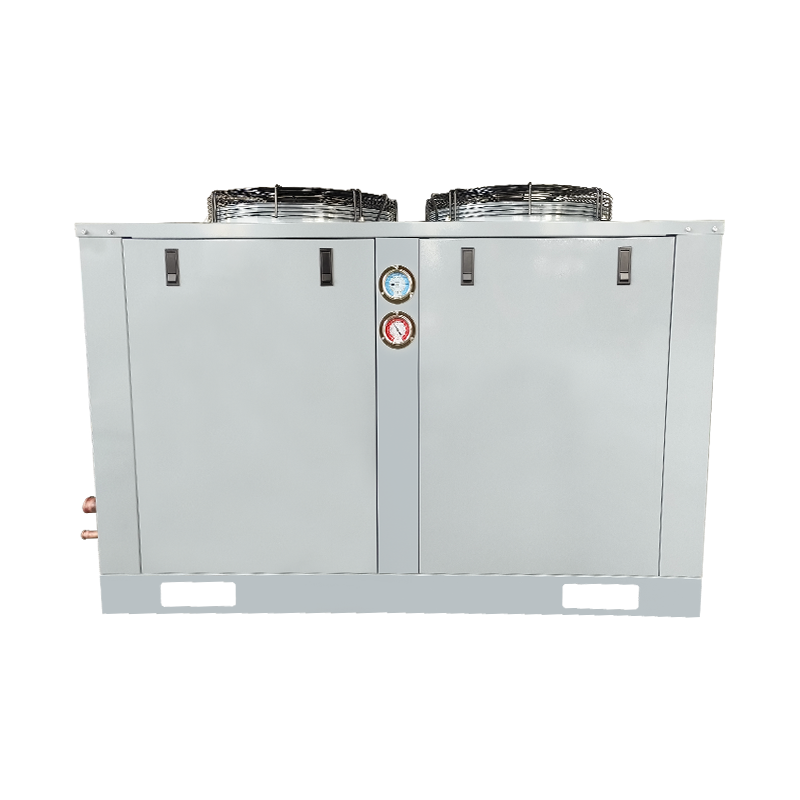

Meet the Top Air Outlet Condensing Unit(Using XECOM compressor) 8-40HP— your ultimate refrigeration powerhouse, now driven by the high-performance XECOM scroll compressor. Engineered for side-air discharge, this rugged, space-saving unit delivers unmatched cooling flexibility across five precision temperature ranges: -30°C to 0°C, -30°C to 10°C, -40°C to -5°C, -35°C to 5°C, and even ultra-low -40°C to 0°C — making it ideal for everything from frozen seafood storage and ice cream production to pharmaceutical cold chains and blast freezing applications. The XECOM compressor brings industrial-grade reliability, ultra-low noise, and exceptional energy efficiency thanks to its advanced scroll design — minimizing wear, maximizing uptime, and slashing your operating costs. Its compact side-discharge layout fits neatly into tight mechanical rooms while ensuring optimal airflow distribution for faster pull-down and consistent temperature control. Built for 24/7 operation in the harshest environments, this unit is your dependable partner in cold. Whether you’re running a distribution center, meat processing plant, or supermarket freezer aisle, the XECOM-powered condensing unit adapts to your exact needs — no compromises.

Contact Us
PREV：No previous article
NEXT：Top Air Outlet Condensing Unit(Using Panasonic Compressor) 8-40HP
Product Parameters
Pdf DownLoad
Unit Model AOSZXL-1.2HP AOSZXL-1.5HP AOSZXL-2HP AOSZXL-3HP AOSZXL-4HP AOSZXL-5HP AOSZXL-6H AOSZXL-8HP AOSZXL-10HP AOSZXL-8HP AOSZXL-10HP AOSZXL-12HP AOSZXL-15HP AOSZXL-20HP
Condensed air outlet type Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -40℃~-5℃/R404A
Power(V-Ph-Hz) 208~230/3/60
Compressor Type Scroll compressor
Capacity(P) 1.2  1.5  2  3  4  5  6  8  10  8  10  12  15  20
Model XFL09B-D1-105 XFL10B-D1-105 XFL15B-D1-105 XFL20B-D1-105 XFL28B-D1-105 XFL35B-D1-105 XFL42B-D1-105 XFL51B-D1-105 XFL72B-D1-105 XFL51B-D1-105 XFL72B-D1-105 XFL80B-D1-105 XFL100B-D1-105 XFL120B-D1-105
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  1  1  2  2  2  2  2  2  2  2  2
Power(W) 60  60  60  130  130  130  130  130  130  230  420W 420W 550W 780W
Fanspecifications 480X153 480X153 480X153 500X148 500X148 500X148 500X148 500X148 500X148 450  500  500  550  600
Airvolume(m³/h) 3500  3500  3500  5000  5000  5000X2 5000X2 5000X2 5000X2 4800X2 6550X2 6550X2 8600X2 11000X2
Specification of condenser copper 内螺纹Internal thread
Condensation area(m²) 11  11  19  30  40  50  60  80  100  80  100  120  150  200
Condenser copper tube φ9(25×21.65) φ9(25×21.65) φ7(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25X21.65) φ9(25×21.65) φ7(21×18.19) φ9(21X×18.19) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 3  3  3  5  5  8  8  10  10  10  10  12  15  20
Specification for globe valves and welded copper pipes 6+12 Threaded connection port 10+16 Threaded connection port 12+19 Threaded connection port 16+28 Welding connection port 16+28 Welding connection port 19+35 Welding connection port 19+42 Welding connection port
Recommended cold storage volume for cold storage temperature
range of 0~-18 C(m³		 10~15 10~15 15~20 20~50 40~60 50~100 60~120 80~140 100~150 80~140 100~150 120~200 150~300 200~400

Cooling capacity(W)		 Evaporating Temperature Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃
-40℃ 751  878  1221  1696  2300  2903  3468  4282  5956  4282  5956  6785  8293  10261
-30℃ 1223  1430  1989  2763  3745  4727  5648  6974  9699  6974  9699  11050  13505  16710
-25℃ 1536  1795  2497  3468  5835  5934  7090  8755  12177  8755  12177  17217  16955  20978
-15℃ 2337  2732  3800  5278  7155  9032  10791  13325  18533  13325  18533  21113  25805  31928
-10℃ 2830  3309  4603  6393  8665  10938  13069  16138  22445  16138  22445  25570  31252  38667
-5℃ 3383  3955  5501  7640  10573  13073  15620  19287  26825  19287  26825  30560  37351  46213
Product dimensions: length ×width×height(mm) 1000×440×575 1000×440×575 1000×440×575 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1230×490×1350 1380×764×1022 1344×764×922 1444×764×1022 1444×894×1122 1644×899×1222
Product dimensions: length ×width×height(mm) 1120×450×695 1120×450×695 1120×450×695 1120×450×955 1120×450×955 1120×450×1360 1120×450×1360 1350×490×1510 1350×490×1510 1580×880×1180 1530×880×1090 1645×900×1170 1645×1015×1290 1830×1200×1390
Packaging dimensions:length×width×height(mm) 49.5  49.5  49.5  51  51  53  53  56  56  56  56  59  63  65
Noise dB(A) 48  48  51  71  75  90  99  122  129  / / / / /
Net weight(kg) 55  55  58  78  82  97  106  130  137  / / / / /
Gross weight(kg) 725×410 725×410 725×410 725×410 725×410 725×410 725×410 690×450 690×450 906×725 870×725 970×755 970x855 970x860
Throttling device Thermal expansion valve(user provided)
Recommend using the thermal expansion valve model TES24# TES24# TES24# TES26# TES26# TGES6 TGES6 TGES9 TGES11 TGES9 TGES11 TGES13 TGES13 TGES13
Recommended air cooler model HS401AJ01.8 HS401AJ01.8 HS401AJ01.8 HS401AJ02.5 HS402AJ03.3 HS402AJ04.4 HS402AJ04.9 HS403AJ07.2 HS404AJ08.7 HS403AJ07.2 HS404AJ08.7 HS404AJ10.1 HS504AJ12.1 HS504AJ15
Note: In order to ensure the cooling effect of the unit installation,it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable diameter copper pipes can be used when connecting to the condensing unit!

Unit Model AOSZXV-1.2HP AOSZXV-1.5HP AOSZXV-2HP AOSZXV-3HP AOSZXV-4HP AOSZXV-5HP AOSZXV-6H AOSZXV-8HP AOSZXV-10HP AOSZXV-8HP AOSZXV-10HP AOSZXV-12HP AOSZXV-15HP AOSZXV-20HP
Condensed air outlet type Side air outlet Top air outlet
Evaporating Temperature/Refrigerant -35℃~5℃/R404A
Power(V-Ph-Hz) 208~230/3/60
Compressor Type Scroll compressor
Capacity(P) 1.2  1.5  2  3  4  5  6  8  10  8  10  12  15  20
Model XFV09B-D1-181 XFV10B-D1-181 XFV15B-D1-181 XFV20B-D1-181 XFV28B-D1-181 XFV35B-D1-181 XFV42B-D1-181 XFV51B-D1-181 XFV72B-D1-181 XFV51B-D1-181 XFV72B-D1-181 XFV80B-D1-181 XFV100B-D1-181 XFV120B-D1-181
Condenser blade and
motor parameters		 Brand Orient HaiLe
Number 1  1  1  1  1  2  2  2  2  2  2  2  2  2
Power(W) 60  60  60  130  130  130  130  130  130  230  420W 420W 550W 780W
Fanspecifications 480×153 480×153 480X153 500×148 500×148 500×148 500×148 500×148 500×148 450  500  500  550  600
Volume(m³/h) 3500  3500  3500  5000  5000  5000×2 5000×2 5000×2 5000×2 4800×2 6550×2 6550×2 8600×2 11000×2
Specification of condenser copper Internal thread
Condensation area(m²) 11  11  19  30  40  50  60  80  100  80  100  120  150  200
Condenser copper tube φ9(25×21.65) φ9(25×21.65) φ7(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(25×21.65) φ9(25×21.65) φ7(21×18.19) φ9(21×18.19) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65) φ9(25×21.65)
Reservoir volume(L) 3  3  3  5  5  8  8  10  10  10  10  12  15  20
Specification for globe valves and welded copper pipes 6+12 Threaded connection port 10+16 Threaded connection port 12+19 Threaded connection port 16+28 Welding connection port 16+28 Welding connection port 19+35 Welding connection port 19+42 Welding connection
Recommended cold storage volume forcold storage
temperature range of 0~-18 C(m³)		 10~15 10~15 15~20 20~50 40~60 50~100 60~120 80~140 100~150 80~140 100~150 120~200 150~300 200~400

Cooling capacity(W)		 Evaporating Temperature Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃
-40℃ 751  878  1222  1697  2301  2904  3470  4284  5959  4284  5959  6788  8797  10266
-30℃ 1225  1429  1988  2761  3743  4725  5646  6971  9696  6971  9696  11046  13501  16704
-20℃ 1906  2228  3099  4305  5835  7366  8801  10867  15115  10867  15115  17219  21046  26039
-10℃ 2831  3309  4603  6393  8666  10940  13071  16139  22447  16139  22447  25573  31256  38672
0℃ 3989  4663  6486  9009  12212  15415  18418  22742  31630  22742  31630  36035  44042  54492
Product dimensions: length ×width×height(mm) 1000×440×575 1000×440×575 1000×440×575 1000×440×825 1000×440×825 1000×440×1225 1000×440×1225 1230×490×1350 1230×490×1350 1380×764×1022 1344×764×922 1444×764×1022 1444×894×1122 1644×899×1222
Product dimensions: length ×width×height(mm) 1120×450×695 1120×450×695 1120×450×695 1120×450×955 1120×450×955 1120×450×1360 1120×450×1360 1350×490×1510 1350×490×1510 1580×880×1180 1530×880×1090 1645×900×1170 1645×1015×1290 1830×1200×1390
Packaging dimensions:length×width×height(mm) 725×410 725×410 725×410 725×410 725×410 725×410 725×410 690×450 690×450 906×725 870×725 970×755 970x855 970×860
Noise dB(A) 49.5  49.5  49.5  51  51  53  53  56  56  56  56  59  63  65
Net weight(kg) 48  48  51  71  75  90  99  122  129  / / / /
Gross weight(kg) 55  55  58  78  82  97  106  130  137  / / / / /
Throttling device Thermal expansion valve(user provided)
Recommend using the thermal expansion valve model TES24# TES24# TES24# TES26# TES26# TGES6 TGES6 TGES9 TGES11 TGES9 TGES11 TGES13 TGES13 TGES13
Recommended air cooler model HS401AD02.5 HS401AD02.5 HS401AD02.5 HS401AD03.4 HS402AD04.2 HS402AD06.0 HS402AD06.6 HS403AD09.7 HS404AD11.9 HS403AD09.7 HS404AD11.9 HS404AD13.5 HS504AD16.5 HS504AD20.8
Note: In order to ensure the cooling effect of the unit installation, it is recommended to use copper pipes with specifications not smaller than those of the air cooler.
          Variable diameter copper pipes can be used when connecting to the condensing unit!
