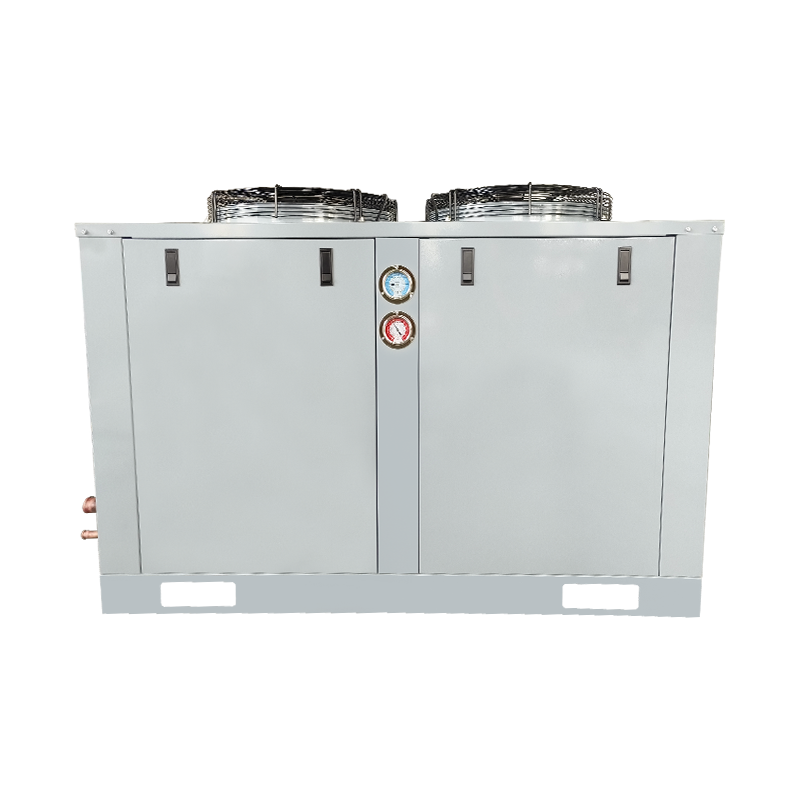

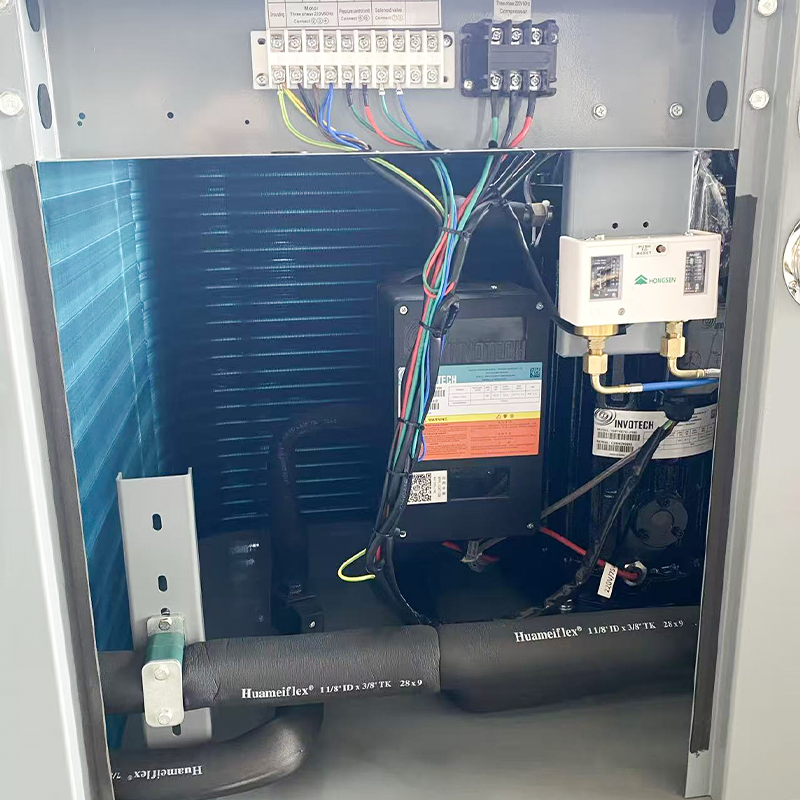

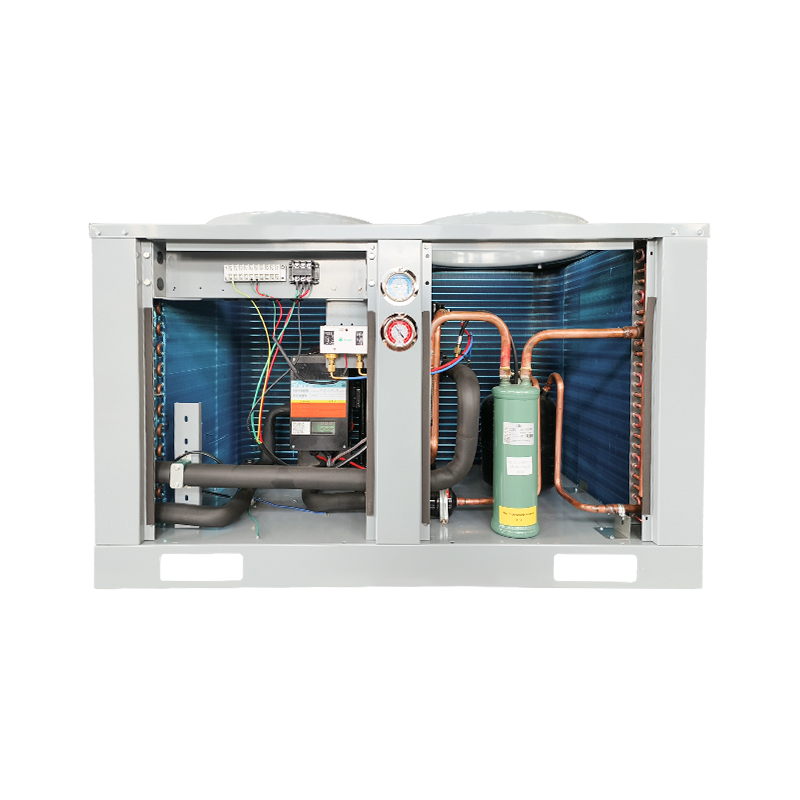

Top Air Outlet Condensing Unit(Using Copeland Compressor) 8-40HP for sale
| Unit Model | AOSZFA-4HP | AOSZFA-5HP | AOSZFA-6HP | AOSZFA-8HP | AOSZFA-10HP | AOSZFA-10HP | AOSZFA-10HP | AOSZFA-13HP | AOSZFA-15HP | AOSZFA-17HP | |
| Condensed air outlet type | Side air outlet | Top air outlet | |||||||||
| Evaporating Temperature/Refrigerant | -40℃~0℃/R404A | ||||||||||
| Power(V-Ph-Hz) | 200~230/3/60 /380~420/3/60 | ||||||||||
| Compressor | Type | Emerson Scroll compressor | |||||||||
| Capacity(P) | 4 | 5 | 6 | 8 | 10 | 8 | 10 | 13 | 15 | 17 | |
| Model | ZF13KQE-TF7 | ZF15KQE-TF7 | ZF18KQE-TF7 | ZF25KQE-TF7 | ZF34KQE-TF7 | ZF25KQE-TF7 | ZF34KQE-TF7 | ZF41KQE-TF7 | ZF49KQE-TF7 | ZF54KQE-TF7 | |
| Condenser blade and motor parameters |
Brand | Orient | HaiLe | ||||||||
| Number | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Power(W) | 130 | 130 | 130 | 130 | 130 | 230 | 420W | 420W | 550W | 550W | |
| Fanspecifications | 500×148 | 500×148 | 500×148 | 500×148 | 500×148 | 450 | 500 | 500 | 550 | 550 | |
| Air volume(m³/h) | 5000 | 5000×2 | 5000×2 | 5000×2 | 5000×2 | 4800×2 | 6550×2 | 6550×2 | 8600×2 | 8600×2 | |
| Specification of condenser copper | 内螺纹Internal thread | ||||||||||
| Condensation area(m²) | 40 | 50 | 60 | 80 | 100 | 80 | 100 | 120 | 150 | 150 | |
| Condenser copper tube | φ9(25×21.65) | φ7(25×21.65) | φ9(25×21.65) | φ7(21×18.19) | φ9(21×18.19) | φ9(25×21.65) | φ9(25×21.65) | φ9(25×21.65) | φ9(25×21.65) | φ9(25X21.65) | |
| Reservoir volume (L) | 5 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 15 | 15 | |
| Specification for globe valves and welded copper pipes | 12+19 Threaded connection port | 16+28 Welding connection port | 16+28 Welding connection port | 19+35 Welding connection port | |||||||
| Recommended cold storage volume for cold storage temperature range of 0~-18 C(m³) |
40~60 | 50~100 | 60~120 | 80~140 | 100~150 | 80~140 | 100~150 | 120~200 | 150~300 | 150~300 | |
| Cooling capacity | Evaporating Temperature | Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃ | |||||||||
| -40℃ | 2660 | 3380 | 4080 | 5050 | 6500 | 5050 | 6500 | 8290 | 9960 | 11350 | |
| -30℃ | 4270 | 5300 | 6410 | 7910 | 10500 | 7910 | 10500 | 13100 | 15700 | 17900 | |
| -20℃ | 6460 | 7930 | 9530 | 11950 | 15700 | 11950 | 15700 | 19400 | 23500 | 26800 | |
| -10℃ | 9370 | 11550 | 13800 | 17450 | 22700 | 17450 | 22700 | 28000 | / | / | |
| -5℃ | 11150 | 13750 | 16450 | 20800 | 27100 | 20800 | 27100 | 33400 | / | / | |
| 0℃ | 13100 | 16300 | 19550 | / | / | / | / | / | / | / | |
| Product dimensions: length ×width×height(mm) | 1000×440×825 | 1000×440×1225 | 1000×440×1225 | 1230×490×1350 | 1230×490×1350 | 1380×764×1022 | 1344×764×922 | 1444×764×1022 | 1444×894×1122 | 1444×894×1122 | |
| Product dimensions: length ×width×height(mm) | 1120×450×955 | 1120×450×1360 | 1120×450×1360 | 1350×490×1510 | 1350×490×1510 | 1580×880×1180 | 1530×880×1090 | 1645×900×1170 | 1645×1015×1290 | 1645×1015×1290 | |
| Packaging dimensions:length×width×height(mm) | 725×410 | 725×410 | 725×410 | 690×450 | 690×450 | 906×725 | 870×725 | 970×755 | 970×855 | 970×855 | |
| Noise dB(A) | 51 | 53 | 53 | 56 | 56 | 56 | 56 | 59 | 63 | 63 | |
| Net weight(kg) | 75 | 90 | 99 | 122 | 129 | / | / | / | / | / | |
| Gross weight(kg) | 82 | 97 | 106 | 130 | 137 | / | / | / | / | / | |
| Throttling device | Thermal expansion valve(user provided) | ||||||||||
| Recommend using the thermal expansion valve model | TES26# | TGES6 | TGES6 | TGES9 | TGES11 | TGES9 | TGES11 | TGES13 | TGES13 | TGES13 | |
| Recommended air cooler model | HS402AJ03.3 | HS402AJ04.4 | HS402AJ04.9 | HS403AJ07.2 | HS404AJ08.7 | HS403AJ07.2 | HS404AJ08.7 | HS404AJ10.1 | HS504AJ12.1 | HS504AJ15 | |
| Note:In order to ensure the cooling effect of the unit installation, it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable diameter copper pipes can be used when connecting to the condensing unit! | |||||||||||
| Unit Model | AOSZFIA-4HP | AOSZFIA-5HP | AOSZFIA-6HP | AOSZFIA-8HP | AOSZFIA-10HP | AOSZFIA-8HP | AOSZFIA-10HP | AOSZFIA-12HP | AOSZFIA-15HP | AOSZFIA-18HP | |
| Condensed air outlet type | Side air outlet | Top air outlet | |||||||||
| Evaporating Temperature/Refrigerant | -40℃~-5℃/R404A | ||||||||||
| Power(V-Ph-Hz) | 380~420/3/50 | ||||||||||
| Compressor | Type | Emerson Scroll compressor | |||||||||
| Capacity(P) | 4 | 5 | 6 | 8 | 10 | 8 | 10 | 12 | 15 | 18 | |
| Model | ZFI20KQE-TFD | ZF¹23KQE-TFD | ZFI26KQE-TFD | ZFI36KQE-TFD | ZFI39KQE-TFD | ZFI36KQE-TFD | ZFI39KQE-TFD | ZFI50KQE-TFD | ZFI59KQE-TFD | ZFI68KQE-TFD | |
| Condenser blade and motor parameters |
Brand | Orient | HaiLe | ||||||||
| Number | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Power(W) | 130 | 130 | 130 | 130 | 130 | 230 | 420W | 420W | 550W | 780W | |
| Fanspecifications | 500×148 | 500×148 | 500×148 | 500X×148 | 500×148 | 450 | 500 | 500 | 550 | 600 | |
| Air volume(m³/h) | 5000 | 5000×2 | 5000×2 | 5000×2 | 5000×2 | 4800×2 | 6550×2 | 6550×2 | 8600×2 | 11000×2 | |
| Specification of condenser copper | Internal thread | ||||||||||
| Condensation area(m²) | 40 | 50 | 60 | 80 | 100 | 80 | 100 | 120 | 150 | 200 | |
| Condenser copper tube | φ9(25X×21.65) | φ7(25×21.65) | φ9(25×21.65) | φ7(21×18.19) | φ9(21×18.19) | φ9(25×21.65) | φ9(25×21.65) | φ9(25×21.65) | φ9(25×21.65) | φ9(25×21.65) | |
| Reservoir volume(L) | 5 | 8 | 8 | 10 | 10 | 10 | 10 | 12 | 15 | 20 | |
| Specification for globe valves and welded copper pipes | 12+19 Threaded connection port | 16+28 Welding connection port | 16+28 Welding connection port | 19+35 Welding connection port | 19+42 Welding connection port | ||||||
| Recommended cold storage volume for cold storage temperature range of0~-18 C(m³) |
40~60 | 50~100 | 60~120 | 80~140 | 100~150 | 80~140 | 100~150 | 120~200 | 150~300 | 200~400 | |
| Cooling capacity | Evaporating Temperature | Test conditions: Return air temperature of 20℃, subcooling degree of OK; Condensation temperature 40℃ | |||||||||
| -40℃ | 3270 | 4790 | 5120 | 6320 | 7250 | 6320 | 7250 | 8700 | 10600 | 12050 | |
| -30℃ | 5010 | 6240 | 7360 | 9310 | 10700 | 9310 | 10700 | 12450 | 15150 | 17200 | |
| -20℃ | 7270 | 8750 | 10450 | 13200 | 15100 | 13200 | 15100 | 17850 | 21800 | 24700 | |
| -10℃ | 10200 | 12200 | 14600 | 17850 | 20500 | 17850 | 20500 | 24500 | 29800 | / | |
| -5℃ | 11950 | 14250 | 17100 | 20500 | 23500 | 20500 | 23500 | 28100 | 34200 | / | |
| 0℃ | 13950 | 16500 | 19950 | / | / | / | / | / | / | / | |
| Product dimensions: length ×width×height(mm) | 1000×440×825 | 1000×440×1225 | 1000×440×1225 | 1230×490×1350 | 1230×490×1350 | 1380×764×1022 | 1344×764×922 | 1444×764×1022 | 1444×894×1122 | 1644×899×1222 | |
| Product dimensions: length ×width×height(mm) | 1120×450×955 | 1120×450×1360 | 1120×450×1360 | 1350×490×1510 | 1350×490×1510 | 1580×880×1180 | 1530×880×1090 | 1645×900×1170 | 1645×1015×1290 | 1830×1200×1390 | |
| Packaging dimensions:length×width×height(mm) | 725×410 | 725×410 | 725×410 | 690×450 | 690×450 | 906×725 | 870×725 | 970×755 | 970×855 | 970×860 | |
| Noise dB(A) | 51 | 53 | 53 | 56 | 56 | 56 | 56 | 59 | 63 | 65 | |
| Net weight(kg) | 75 | 90 | 99 | 122 | 129 | / | / | / | / | / | |
| Gross weight(kg) | 82 | 97 | 106 | 130 | 137 | / | / | / | / | / | |
| Throttling device | Thermal expansion valve(user provided) | ||||||||||
| Recommend using the thermal expansion valve model | TES26# | TGES6 | TGES6 | TGES9 | TGES11 | TGES9 | TGES11 | TGES13 | TGES13 | TGES13 | |
| Recommended air cooler model | HS402AJ03.3 | HS402AJ04.4 | HS402AJ04.9 | HS403AJ07.2 | HS404AJ08.7 | HS403AJ07.2 | HS404AJ08.7 | HS404AJ10.1 | HS504AJ12.1 | HS504AJ15 | |
| Note: In order to ensure the correct effect of the unit installation, it is recommended to use copper pipes with specifications not smaller than those of the air cooler. Variable diameter copper pipes can be used when connecting to the condensing unit! | |||||||||||
