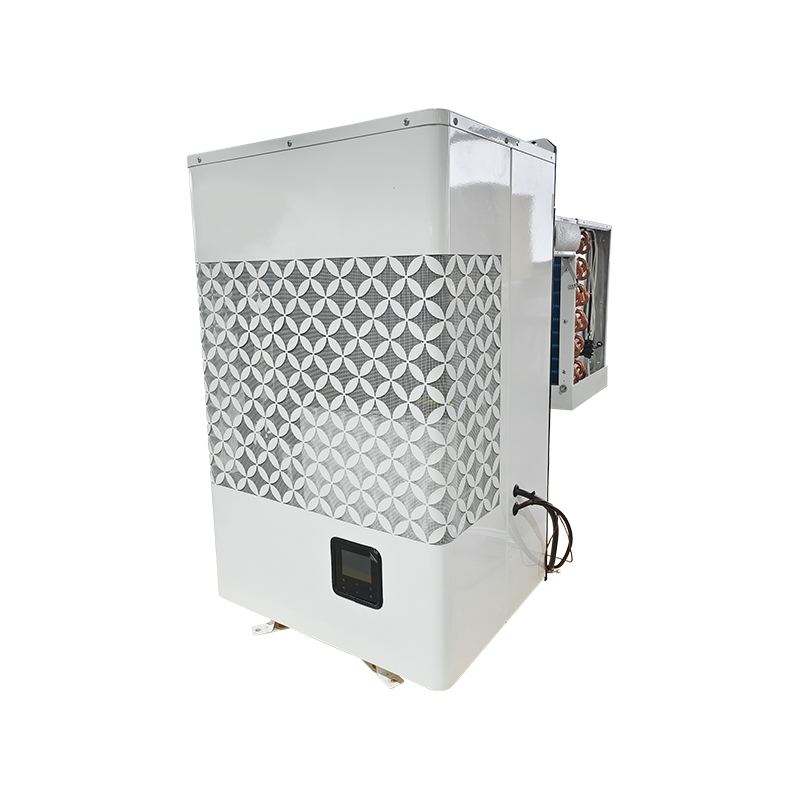

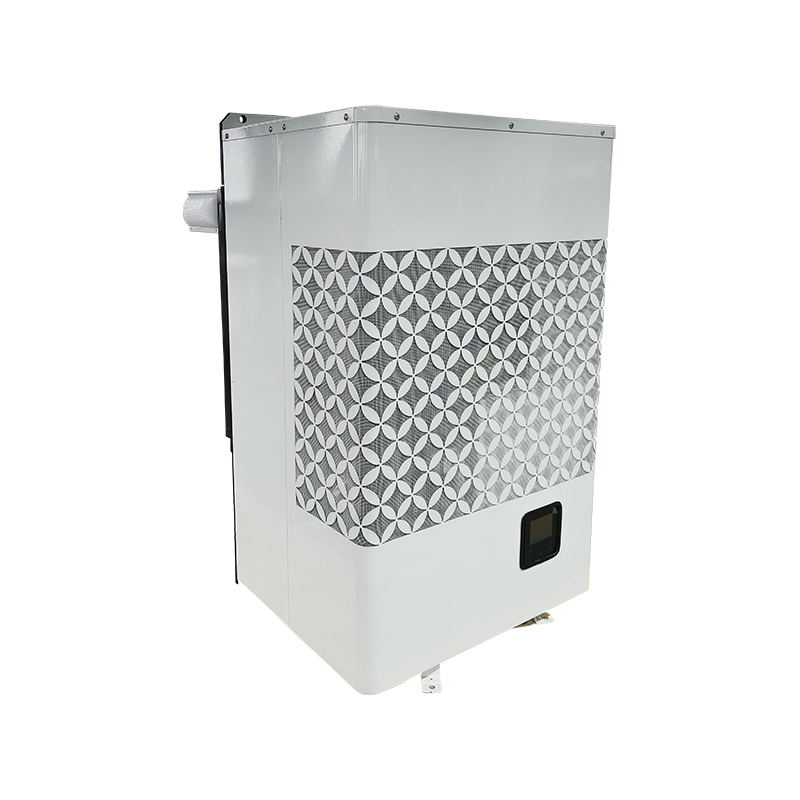

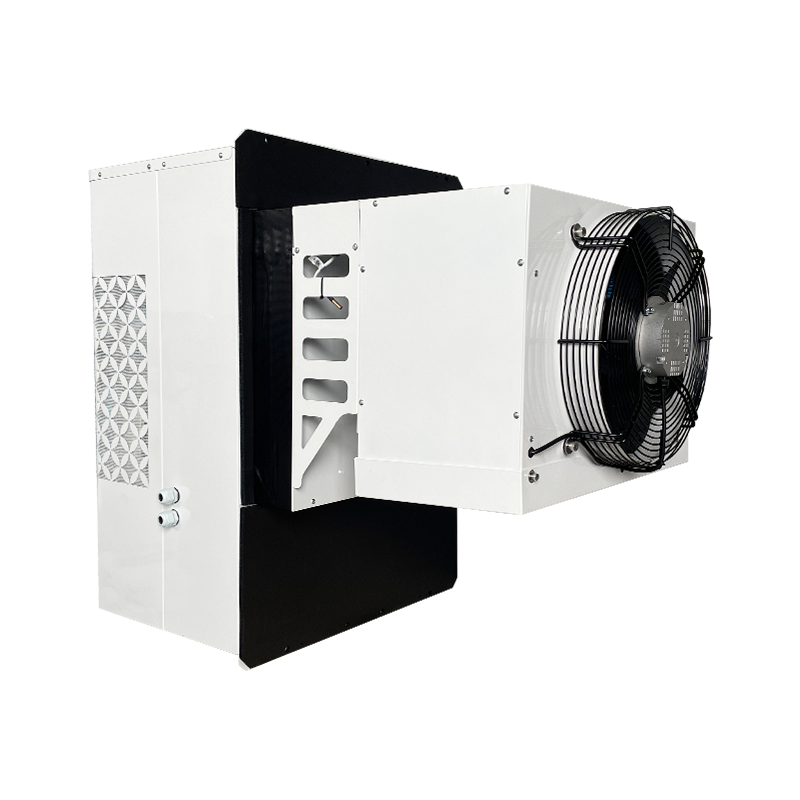

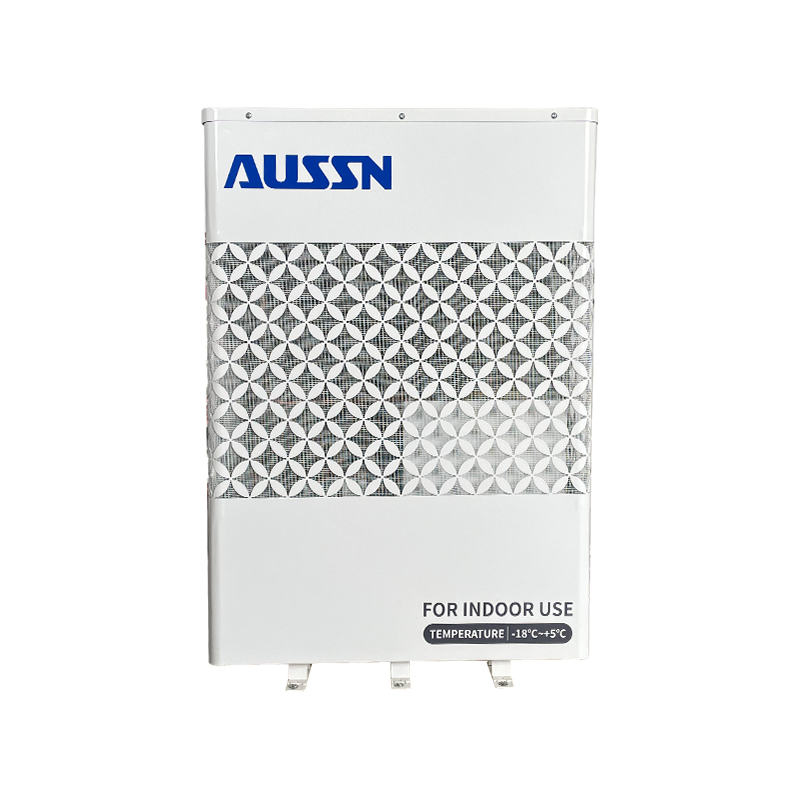

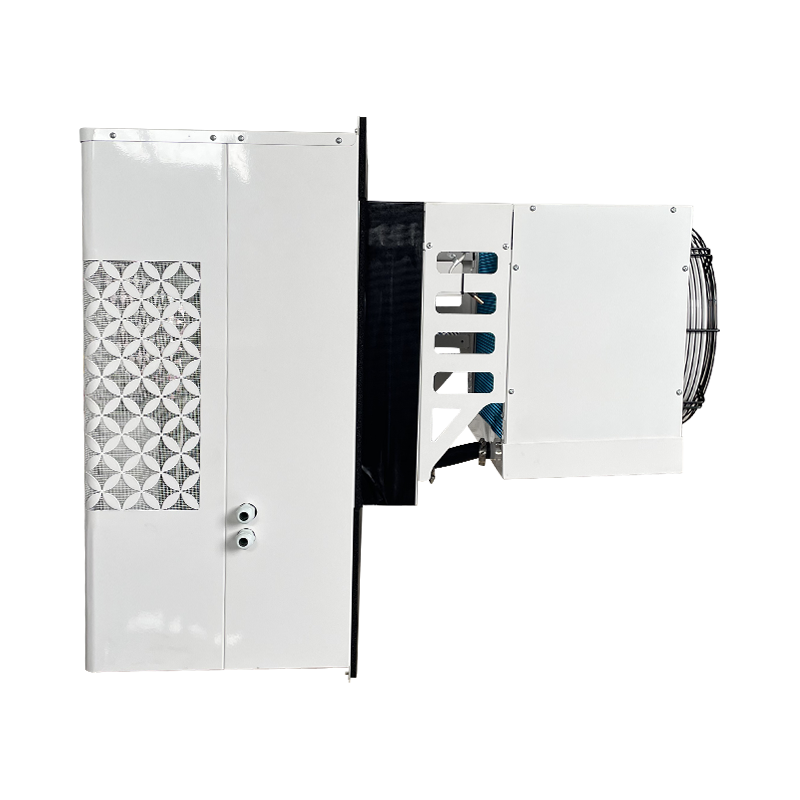

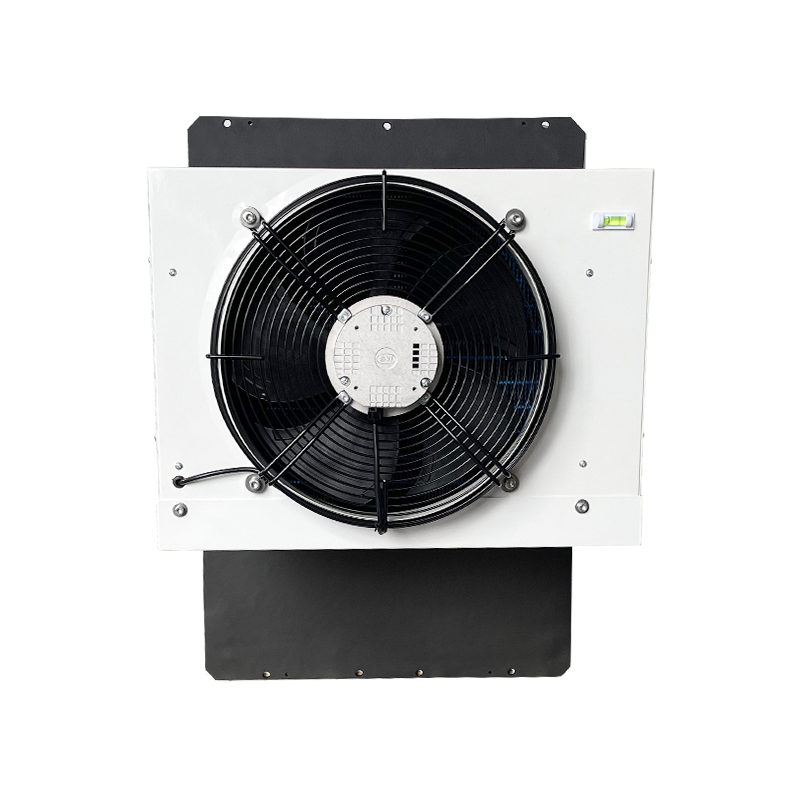

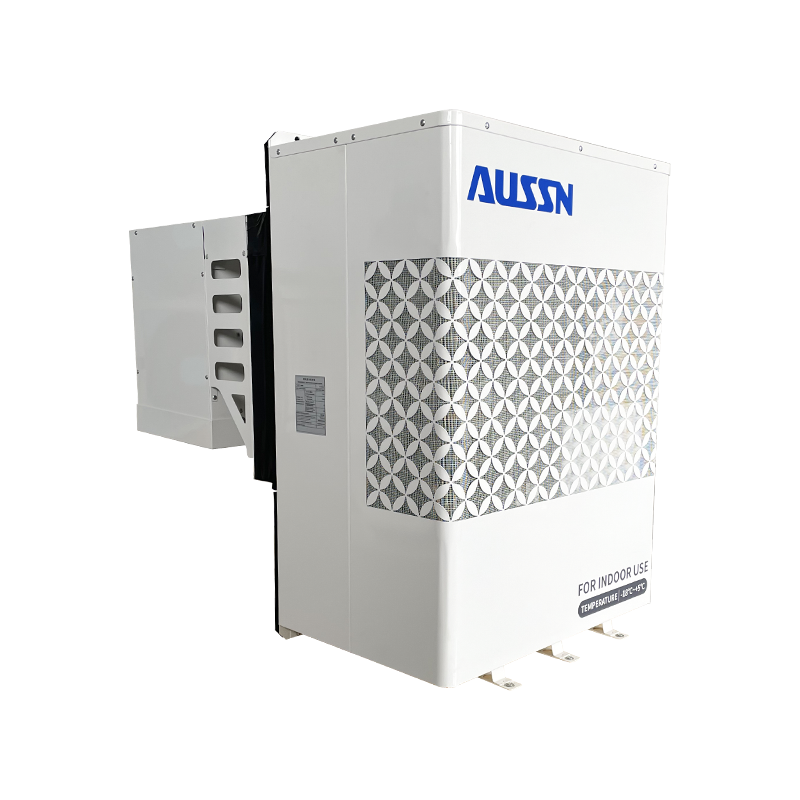

Side-Mounted Integral Unit Monoblock Condensing Unit
Side-Mounted Integral Unit Monoblock Condensing Unit
Side-Mounted Integral Unit Monoblock Condensing Unit
Side-Mounted Integral Unit Monoblock Condensing Unit
Side-Mounted Integral Unit Monoblock Condensing Unit

Side-Mounted Integral Unit Monoblock Condensing Unit

The side-mounted integral unit is suitable for a wide range ofapplications.Standard units can be stacked when installedagainst a wall.The exterior and interior casings are made ofsteel plates coated with high-adhesion epoxy powder,providing excellent corrosion resistance.The unit employs afully enclosed compressor and uses R404A refrigerant.

Contact Us
PREV：No previous article
NEXT：No next article
Product Parameters
Pdf DownLoad
Model YC-010A YC-015A YC-020A YC-030A YC-040A
Power supply 220V-240V 50Hz
Condensation temperature 45℃
Evaporating
temperature -2℃		 Cooling capacity(W) 2265  3400  4575  6510  9130
Capacity(W) 1000  1500  1885  2510  3635
Suggested min volume
of cold  storage(m³)		 11  15  25  70  80
Suggested max volume
of cold  storage(m³		 23  35  50  100  120
Condensation
temperature 45℃
Evaporating
temperature-8℃		 Cooling capacity(W) 1805  2705  3580  5135  7200
Capacity(W) 950  1427  1800  2390  3465
Suggested min volume
of cold  storage(m³)		 9  13  20  45  50
Suggested max volume
of cold  storage(m³)		 20  30  45  80  90
Condensation
temperature 45℃
Evaporating
temperature -15℃		 Cooling capacity(W) 1350  2025  2700  3845  5390
Capacity(W) 895  1340  1700  2250  3255
Suggested min volume
of cold  storage(m³)		 5  10  16  20  25
Suggested max volume
  of cold  storage(m³)		 11  20  30  40  50
Condensation
temperature 45℃
Evaporating
temperature -25℃		 Cooling capacity(W) 865  1300  1740  2480  3475
Capacity(W) 810  1215  1530  2040  2950
Suggested min volume
of cold  storage(m³)		 4  5  10  15  20
Suggested max volume
of cold  storage(m³)		 9  11  20  30  40
Defrosting method Hot fluorine defrosting
Compressor HP 1  1.5  2  3  4
Type Scroll Compressor
Refrigerant/charge volume 0.9  1.2  1.5  2.5  2.8
Product appearance drawing C1 C2 C3
Product size 1050X530X905 1050X620X905 1286X803X990
Packaging size 1140X615X1045 1140X705X1045 1375X890X1130
The size of the opening for cold storage panels 475*500 585*500 770*630
Net weight 90  110  150

Dimension drawing
L W H WK HK
C1 1050  530  905  475  500
C2 1050  620  905  585  500
C3 1286  803  990  770  630
