The variable-frequency thermal defrosting unit is precisely temperature-controlled and highly energy-efficient. It features AI variable-frequency temperature control and is compatible with all scenarios. Users can customize it according to their needs, eliminating the waste of electricity bills. All models are equipped with a self-developed 4G Internet of Things remote monitoring system. Users can check the storage temperature and the operation status of the unit via their mobile phones. In case of any abnormalities, it will automatically issue an alert, enabling precise control of the cold storage operation without the need for on-site personnel. This completely resolves the pain points of "no one to repair the faults and no recovery of losses".
| AI variable-frequency temperature control Variable frequency hot fluorine unit(2P/3P) | ||||
 |

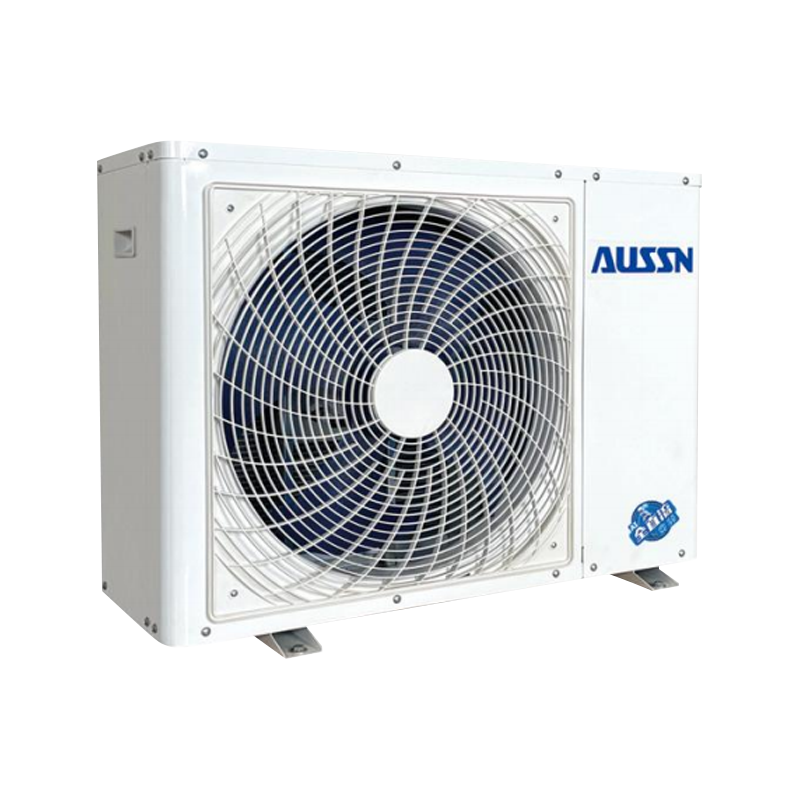

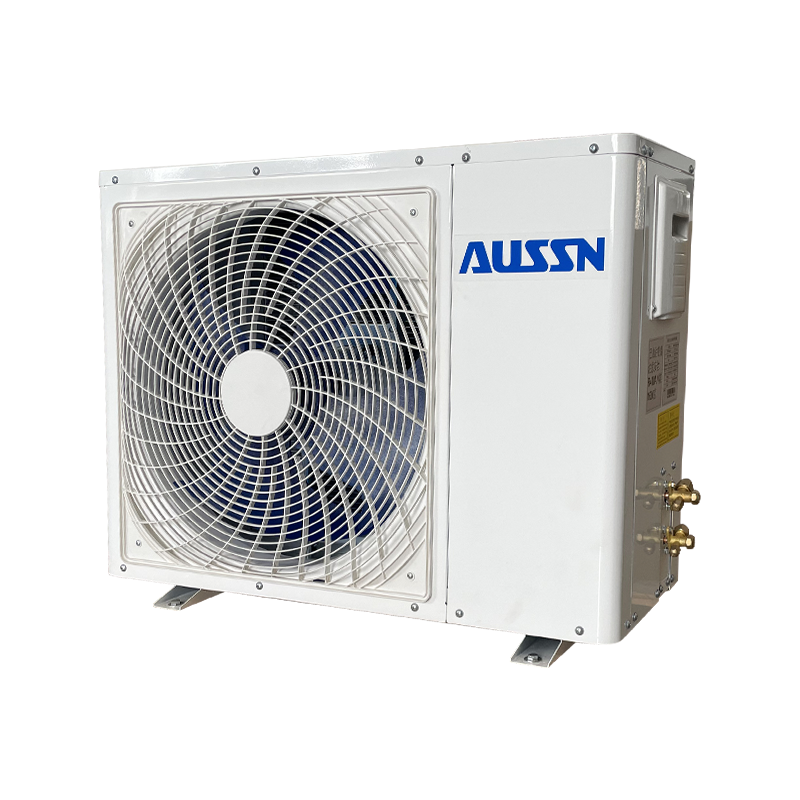

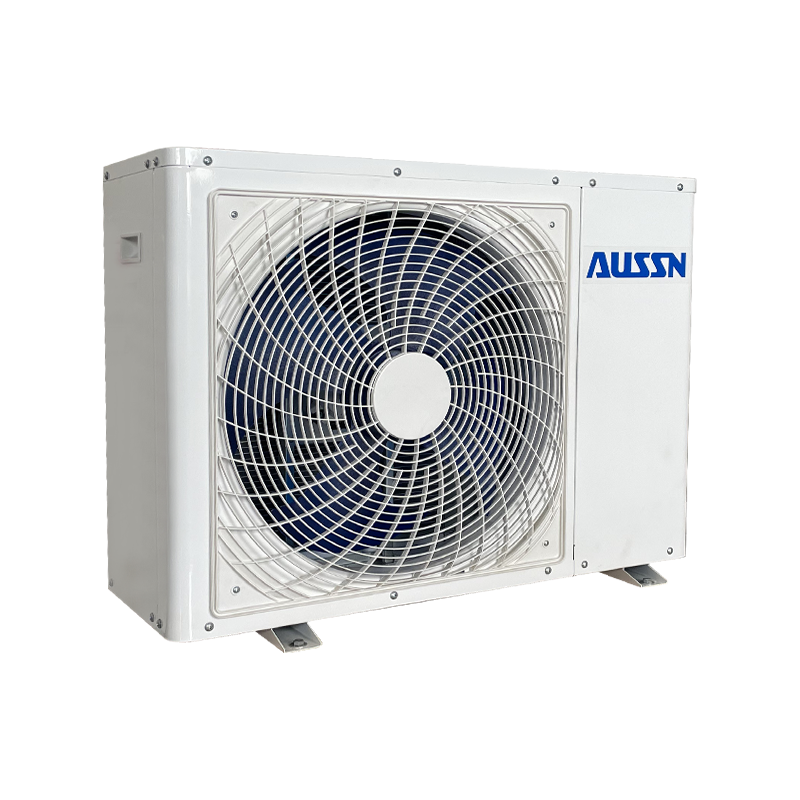

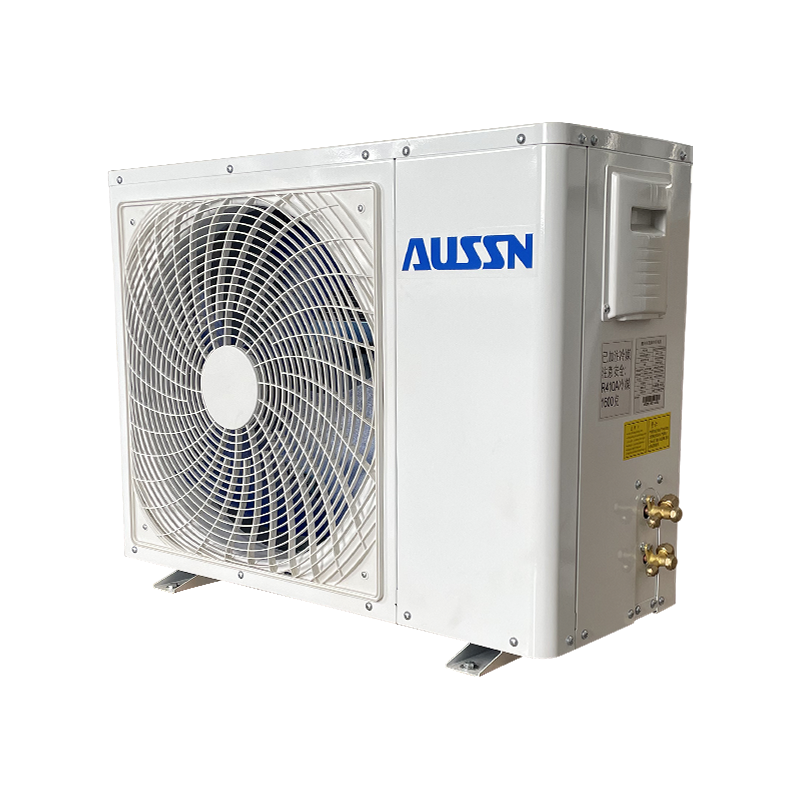

Condensing Unit Model | AOSZ-020BMWE* | AOSZ-030BMWE* | |
| Compatible air cooler models | AOSZ-020BMNE* | AOSZ-030BMNE* | ||
| Reference count | 2HP | 3HP | ||
| Applicable evaporation temperature range (°C) | -25℃-10℃ | -25℃~10℃ | ||
| Refrigerant/Charge | R410A/1200g | R410A/1500g | ||
| Power supply | 220V~50Hz | 220V~50Hz | ||
| Condensing temperature: 40°C Evaporation temperature: -7°C |
Rated Cooling Capacity (W) | 4050(600-4800) | 6900(800-8200) | |
| Rated Power (W) | 1685(400-2000) | 2860(600-3400) | ||
| Recommended Storage Capacity (m³) | 50 | 70 | ||
| Condensing temperature: 40°C Evaporation temperature: -15°C |
Rated Cooling Capacity (W) | 3550(600-4200) | 5020(800-5950) | |
| Rated Power (W) | 1480(400-1750) | 2090(600-2480) | ||
| Recommended Storage Capacity (m³) | 40 | 50 | ||
| Condensing temperature: 40°C Evaporation temperature: -25°C |
Rated Cooling Capacity (W) | 2290(600-2720) | 3240(800-3840) | |
| Rated Power (W) | 950(400-1130) | 1350(600-1600) | ||
| Recommended Storage Capacity (m³) | 25 | 40 | ||
| Net weight (kg) | 40 | 50 | ||
| Connection Specifications | φ12.7 | φ15.88 | ||
| φ6.35 | φ9.52 | |||
| Dimensions (L x W x H) (mm) | 905x350x650 | 905X350X650 | ||
| Installation Dimensions (Length × Width) (mm) | 600x360 | 600X360 | ||
| Applicable Standards | GB/T 21363-2018 | GB/T 21363-2018 | ||
| Key Features | Compressor | Meizhi (CMCC) KSN140D33UFZ3 | Meizhi (CMCC) KTM210D15UFZA3 | |
| Electronic expansion valve | Meizhi (CMCC) | Meizhi (CMCC) | ||
| Four-way reversing valve | Sanhua | Sanhua | ||
| DC motor | Weiling | Weiling | ||
| Selection criteria: Polyurethane insulation of 10 cm or more; daily stock turnover of less than 10%; and a temperature difference of 8 degrees or less between incoming goods and the target warehouse temper. | ||||
| AI variable-frequency temperature control Variable frequency hot fluorine unit(5P) | |||
 |

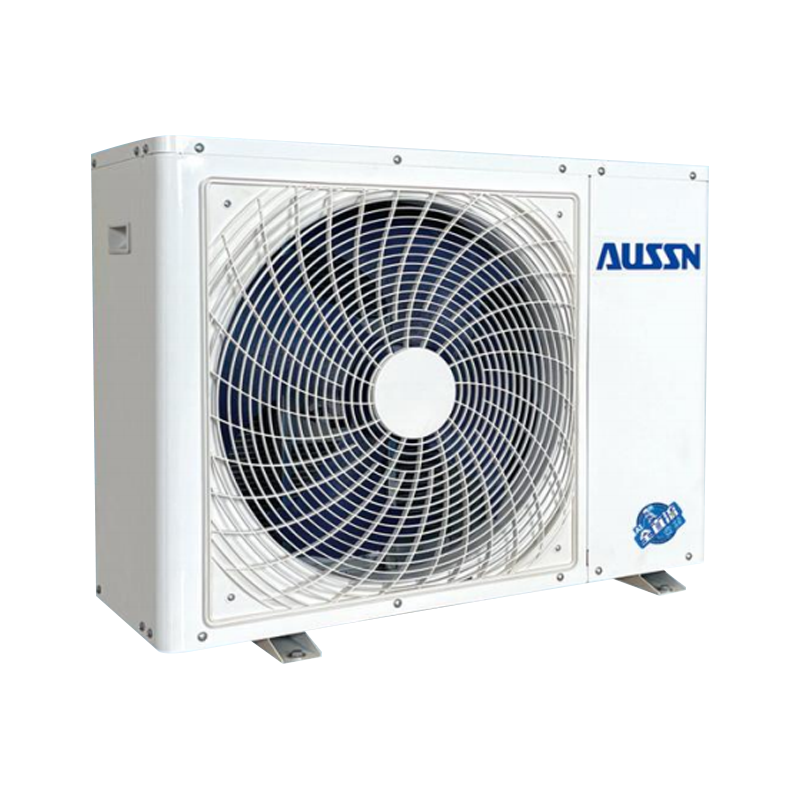

Condensing Unit Model | AOSZ-050BMWE* | |
| Compatible air cooler models | AOSZ-050BMNE* | ||
| Reference count | 5HP | ||
| Applicable evaporation temperature range (°C) | -25℃~10℃ | ||
| Refrigerant/Charge | R410A/2500g | ||
| Power supply | 220V~50Hz | ||
| Condensing temperature: 40°C Evaporation temperature: -7°C |
Rated Cooling Capacity (W) | 12200(800-14500) | |
| Rated Power (W) | 5085(600-6040) | ||
| Recommended Storage Capacity (m³) | 110 | ||
| Condensing temperature: 40°C Evaporation temperature: -15°C |
Rated Cooling Capacity (W) | 8750(800-10370) | |
| Rated Power (W) | 3645(600-4320) | ||
| Recommended Storage Capacity (m³) | 70 | ||
| Condensing temperature: 40°C Evaporation temperature: -25°C |
Rated Cooling Capacity (W) | 5620(800-6670) | |
| Rated Power (W) | 2340(600-2780) | ||
| Recommended Storage Capacity (m³) | 60 | ||
| Net weight (kg) | 60 | ||
| Connection Specifications | φ15.88 | ||
| φ9.52 | |||
| Dimensions (L x W x H) (mm) | 1040x390x740 | ||
| Installation Dimensions (Length × Width) (mm) | 725x410 | ||
| Applicable Standards | GB/T 21363-2018 | ||
| Key Features | Compressor | Meizhi (CMCC) KTM310D86UMTA | |
| Electronic expansion valve | Meizhi (CMCC) | ||
| Four-way reversing valve | Sanhua | ||
| DC motor | Weiling | ||
| Selection criteria: Polyurethane insulation of 10 cm or more; daily stock turnover of less than 10%; and a temperature difference of 8 degrees or less between incoming goods and the target warehouse temperature. | |||
 |

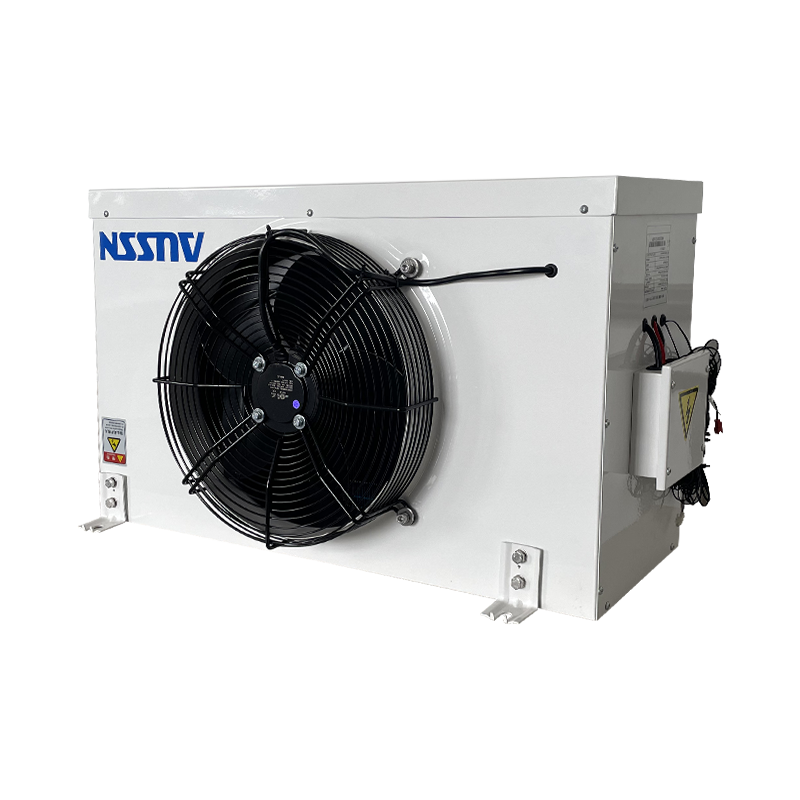

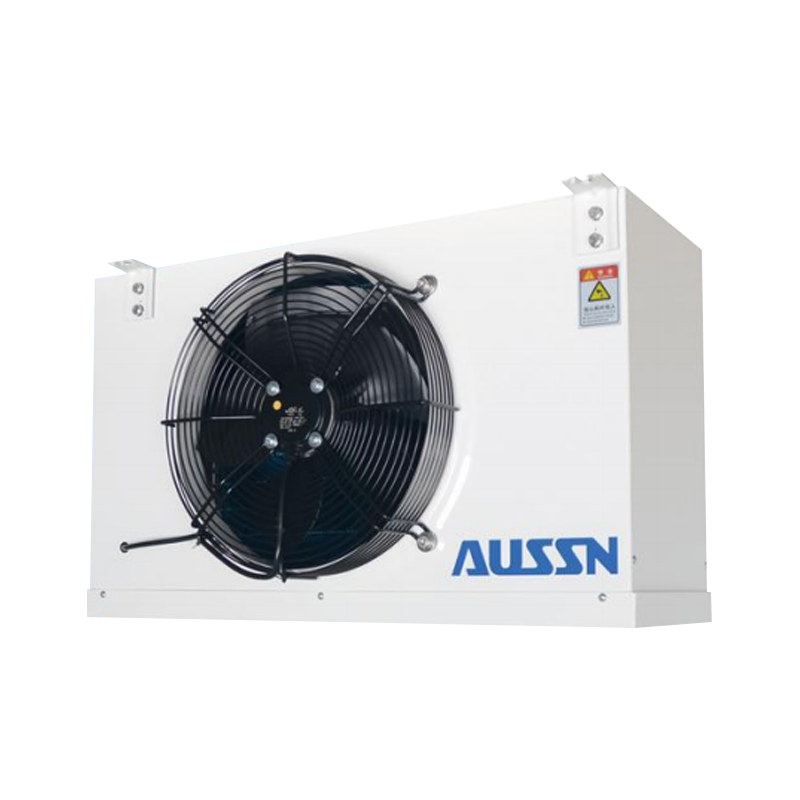

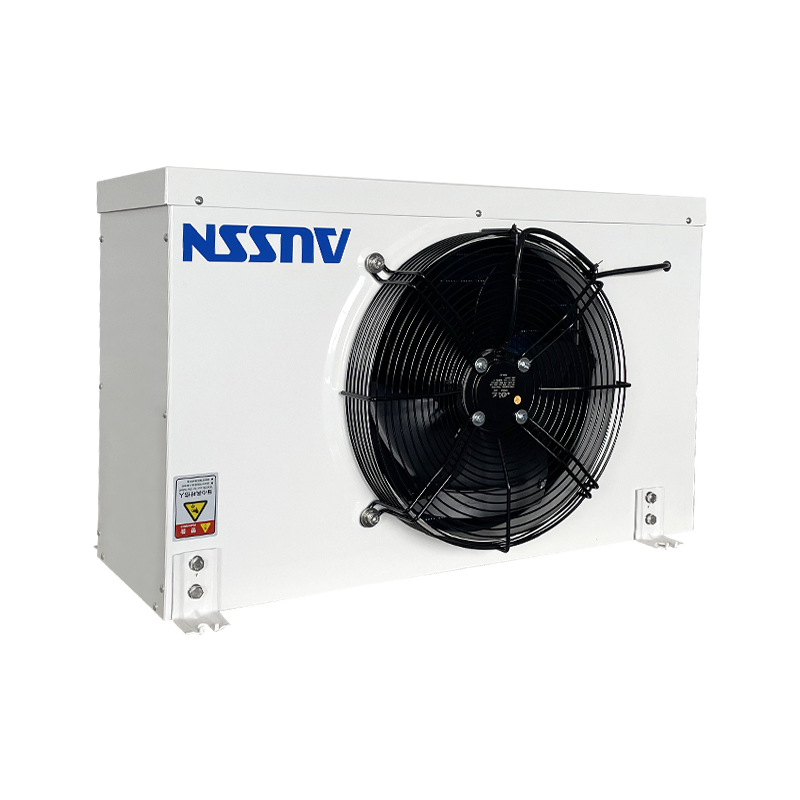

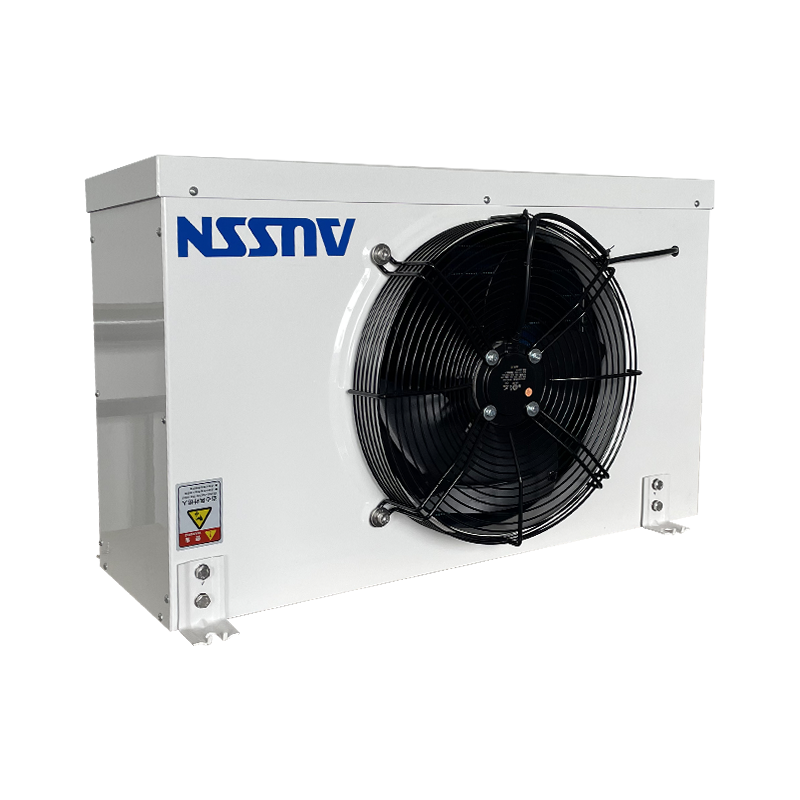

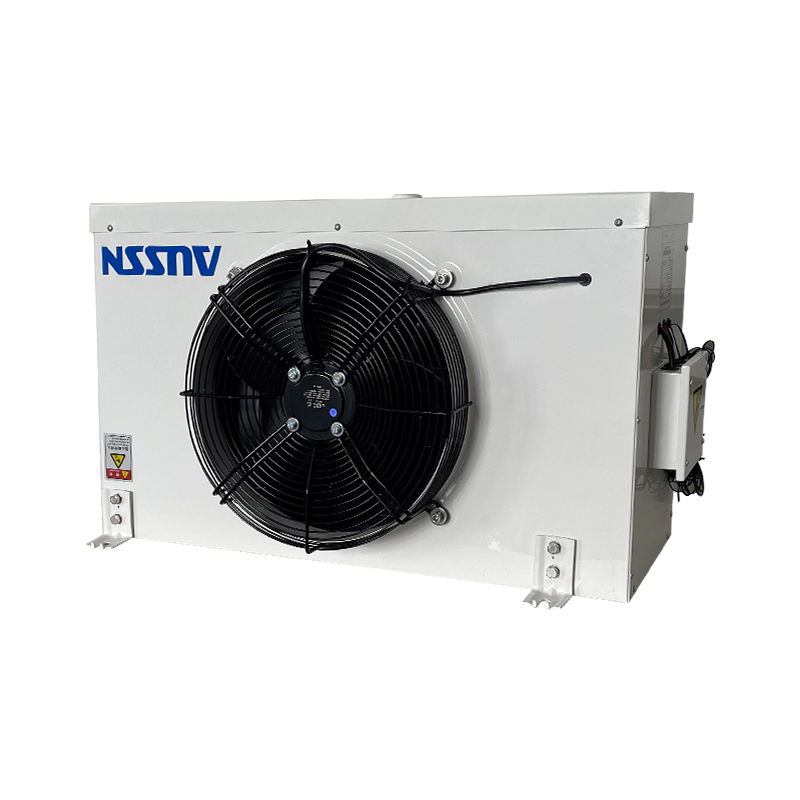

Air Cooler Model | AOSZ-020BMNE* | AOSZ-030BMNE* |
| Power Supply | 220V~50Hz | 220V~50Hz | |
| Rated Cooling Capacity (SC2) | 4700 | 5300 | |
| Suitable Storage Temperature Range (°C) | -18~20 | -18~20 | |
| Fan Blade Diameter | 1x350 | 1x400 | |
| Fan Power (W) | 1x130 | 1x110 | |
| Defrosting Method | Hot-air defrosting + electric heating | Hot-air defrosting + electric heating | |
| Auxiliary Electric Heating Power (W) | 630 | 800 | |
| Net Weight (kg) | 24 | 27.5 | |
| Liquid Inlet Pipe Diameter (mm) | φ9.52 | φ12.7 | |
| Air Outlet Pipe Diameter (mm) | φ15.88 | φ19.05 | |
| Overall Dimensions (L x W x H) (mm) | 845x430x550 | 950x430x550 | |
| Installation Dimensions (L x W) (mm) | 660x320 | 750x320 | |
| Compliance Standards | GB/T 25129-2010 | GB/T 25129-2010 |
 |

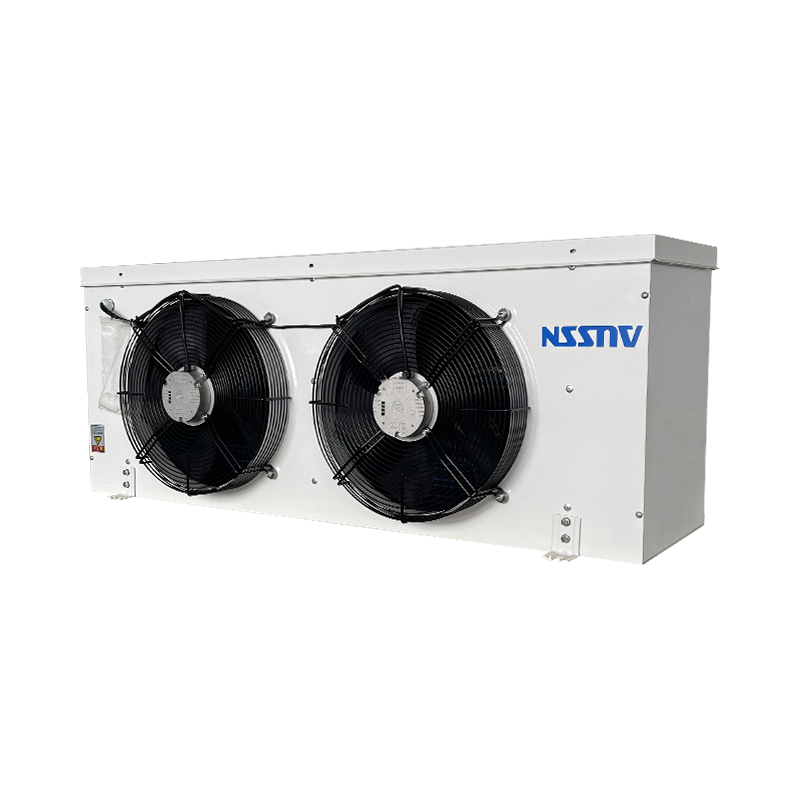

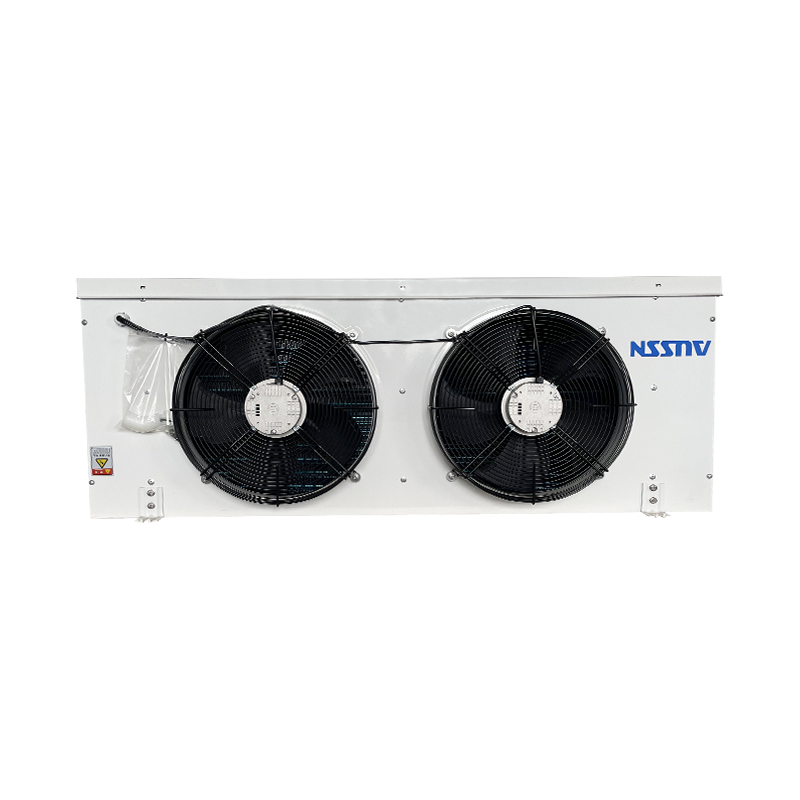

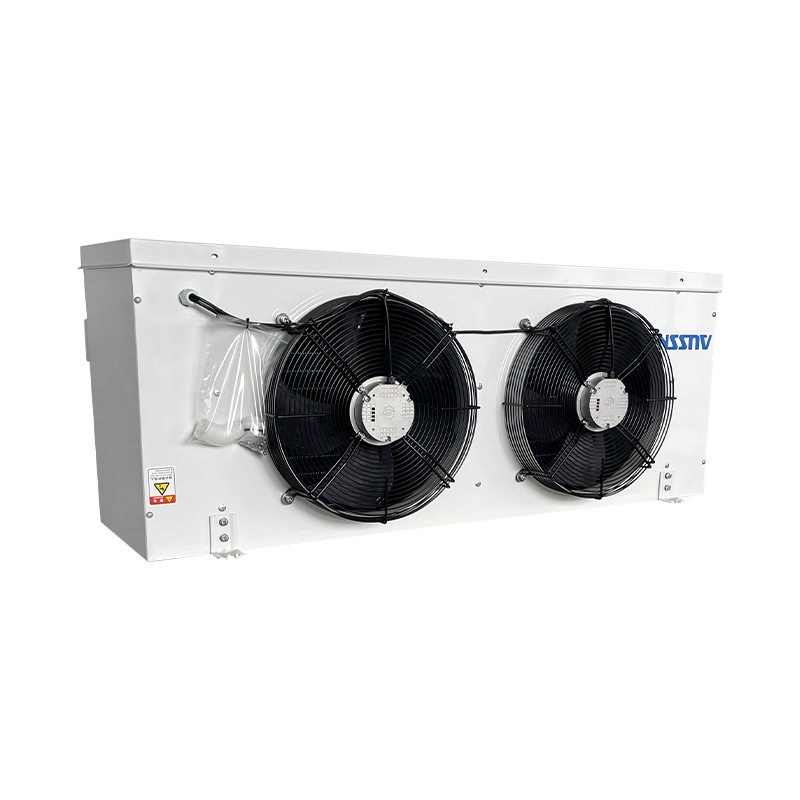

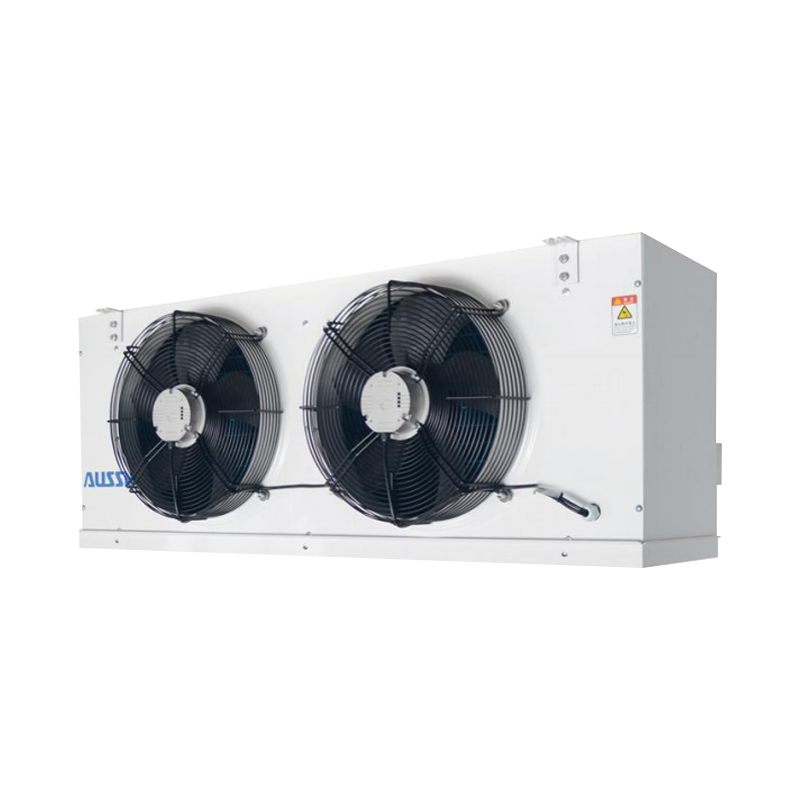

Air Cooler Model | AOSZ-050BMNE* | |
| Power Supply | 220V~50Hz | ||
| Rated Cooling Capacity (SC2) | 10000 | ||
| Suitable Storage Temperature Range (°C) | -18~20 | ||
| Fan Blade Diameter | 2x400 | ||
| Fan Power (W) | 2x110 | ||
| Defrosting Method | Hot-air defrosting + electric heating | ||
| Auxiliary Electric Heating Power (W) | 1100 | ||
| Net Weight (kg) | 36 | ||
| Liquid Inlet Pipe Diameter (mm) | φ12.7 | ||
| Air Outlet Pipe Diameter (mm) | φ19.05 | ||
| Overall Dimensions (L x W x H) (mm) | 1320x430x550 | ||
| Installation Dimensions (L x W) (mm) | 1120x320 | ||
| Compliance Standards | GB/T 25129-2010 | ||
